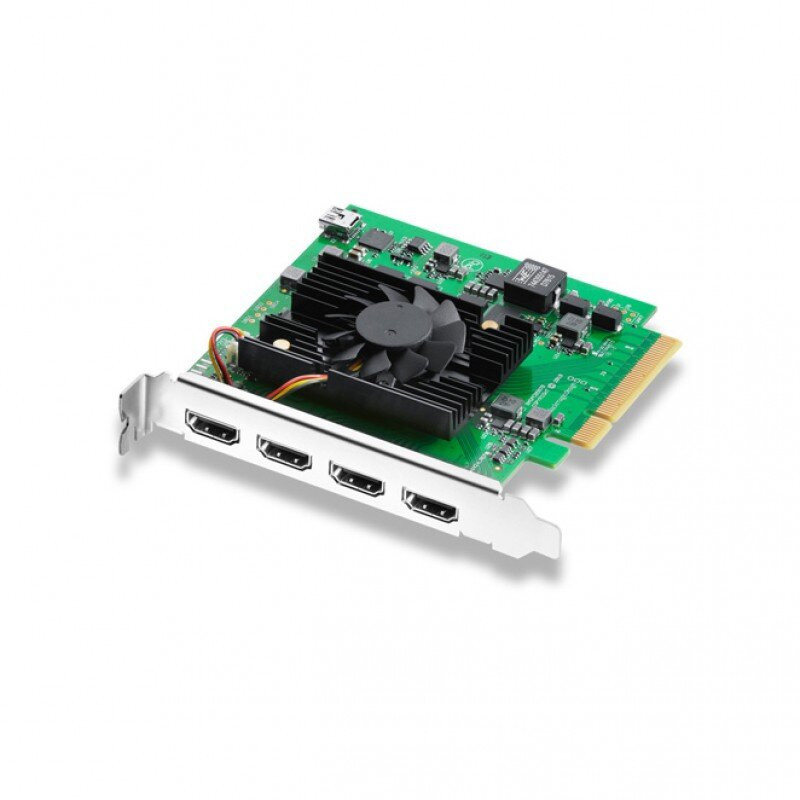

BLACKMAGIC DESIGN DeckLink Quad HDMI Recorder

Alte prestazioni e flessibilità con la scheda di acquisizione DeckLink Quad HDMI Recorder. Dotata di 4 connessioni d'ingresso HDMI 2.0b indipendenti, questa scheda PCIe ti permette di catturare da 4 diverse sorgenti HDMI allo stesso tempo, in qualsiasi combinazione di formati SD, HD, Ultra HD, 4K e persino computer. Il prodotto perfetto per il software live switching, la cattura di giochi per computer in tempo reale, lo streaming e altro ancora.

SPECIFICHE TECNICHE

Technical characteristics

Connections

• HDMI 2.0b video inputs: 4
• HDMI audio inputs: 8 channels embedded in SD / HD / UHD / 4K
• Computer interface: PCI express Gen 3 x8, compatible with x8 and x16 PCIe slots

Supported codecs

• AVC-Intra, AVCHD, Canon XF MPEG2, digital SLR
• DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD
• DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422
• DNxHR, DNxHD
• Apple ProRes 4444, 422 HQ, 422, LT, Proxy
• Uncompressed 8-bit 4:2:2, uncompressed 10-bit 4:2:2

Software

• Software included: Media Express, Disk Speed Test, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux
• Internal software upgrade: firmware built into software driver. Loaded at system start or via updater software
• Physical installation: PCI Express 8 lane generation 3, compatible with 8, 16 lane PCI Express slots on Mac OS, Windows and Linux. Please check the Support pages to see the full system requirements

Software applications

• Wirecast, vMix, OBS
• Also supported: Cinegy Capture Pro, DevTek EasyMediaSuite, Glookast Capturer, Metus Ingest, Softron MovieRecorder, ToolsOnAir just:in, Burst Video WebClip2Go & [REC]Marker, Zoom. These are third party applications and support may vary, check with your software vendor.

Video standards

• SD video standards: 525i 59.94 NTSC, 625i 50 PAL
• HD video standards: 720p 50, 720p 59.94, 720p 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60, 1080i 50, 1080i 59.94, 1080i 60
• Ultra HD video standards: 2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 30, 2160p 50, 2160p 59.94, 2160p 60
• 4K video standards: 4Kp 23.98 DCI, 4Kp 24 DCI, 4Kp 25 DCI, 4Kp 29.97 DCI, 4Kp 30 DCI, 4Kp 50 DCI, 4Kp 59.94 DCI, 4Kp 60 DCI
• DVI standards: 640 x 480p 60, 800 x 600p 50, 800 x 600p 60, 1440 x 900p 50, 1440 x 900p 60, 1440 x 1080p 50, 1440 x 1080p 60, 1600 x 1200p 50, 1600 x 1200p 60, 1920 x 1200p 50, 1920 x 1200p 60, 1920 x 1440p 50, 1920 x 1440p 60, 2560 x 1440p 50, 2560 x 1440p 60, 2560 x 1600p 50, 2560 x 1600p 60
• Audio sampling: television standard sample rate of 48 kHz and 24 bit
• HDMI color precision: 8, 10, 12-bit RGB 4:4:4 in all modes up to 4Kp 30 DCI; 8, 10-bit YUV 4:2:2 in all modes; 8-bit YUV 4:2:0 in Ultra HD and 4K DCI 50p and 60p; 8-bit RGB 4:4:4 in all DVI modes
• Color space: REC 601, REC 709, REC 2020
• HDMI video sampling: 4:4:4, 4:2:2 and 4:2:0
• HDMI configuration: HDMI 2.0b supports Deep Color and HDR
• Multiple rate support: HDMI inputs are switchable between SD, HD, Ultra HD, 4K DCI and DVI modes
• Copy protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content

Operating systems

• Mac OS 14.0 Sonoma, 15.0 Sequoia or later
• Windows 10 (64-bit), Windows 11
• Linux

Power requirment

• Power consumption: 23 W

Enviromental specifications

• Operating temp: 5 to 40 °C
• Storage temp: -20 to 45 °C
• Humidity: 0% to 90% non-condensing

Physical specifications

• Dimensions: 23 x 12.7 cm
• Weight: about 230 g
