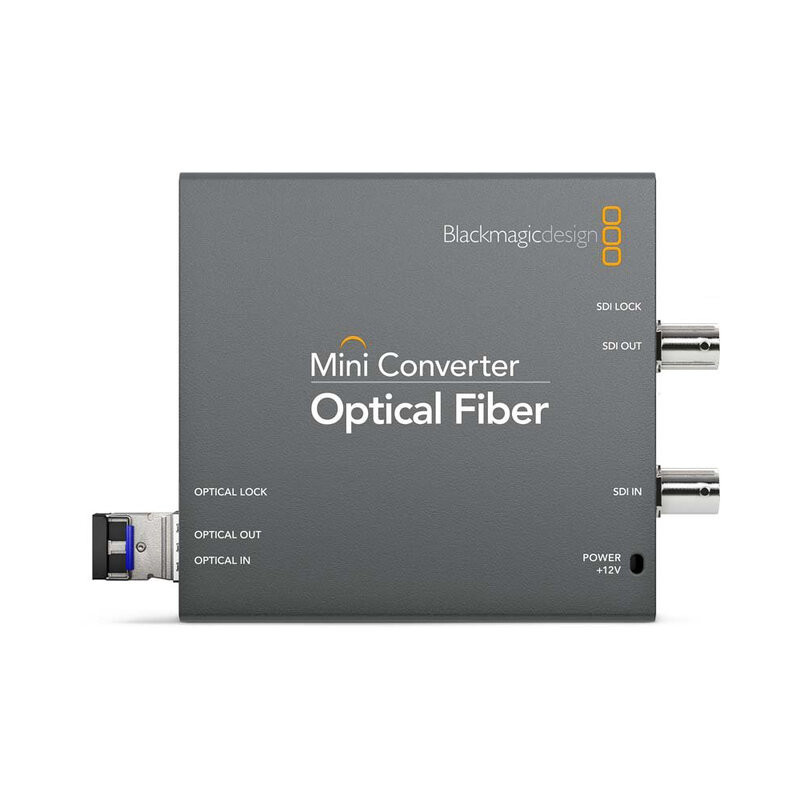

BLACKMAGIC DESIGN Mini Converter

Mini Converter Optical Fiber, converte segnali 3G-SDI in fibra ottica e viceversa allo stesso tempo e in entrambe le direzioni, anche con standard video diversi che procedono in ciascuna direzione. Grazie alle connessioni multi rate 3G-SDI, è compatibile con tutte le apparecchiature e i formati SD e HD, con commutazione automatica fra l'uno e l'altro. Può essere installato qualsiasi modulo in fibra ottica SFP standard SD, HD e 3G, per consentire l'invio SDI anche con cavi in fibra ottica a basso costo, come quelli comunemente usati per le reti di computer.  Alimentatore universale incluso.

SPECIFICHE TECNICHE

Technical characteristics

Connections

• SDI video inputs: switchable between SD, HD and 3G-SDI
• SDI video outputs: automatically matches the SD, HD and 3G-SDI video input on the optical fiber
• Optical fiber video inputs: 1 x 10 bit SD / HD / 3G-SDI switchable
• Optical fiber video outputs: 1 x 10 bit SD / HD / 3G-SDI switchable
• Optical fiber audio inputs: 16 channel embedded
• Optical fiber audio outputs: 16 channel embedded
• Multi rate support: auto detection of HD or standard definition SDI inputs
• Reclocking: yes

Standards

• SDI video standards: 625/25 PAL, 525/23.98 NTSC, 525/29.97 NTSC
• HD video standards: 720p 50, 720p 59.94, 720p 60, 1080PsF 23.98, 1080PsF 24, 1080PsF 25, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60, 1080i 50, 1080i 59.94, 1080i 60, 2048 x 1080PsF 23.98, 2048 x 1080p 23.98, 2048 x 1080PsF 24, 2048 x 1080p 24, 2048 x 1080PsF 25, 2048 x 1080p 25
• SDI compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, ITU-R BT.656, ITU-R BT.601 and SMPTE 297M for optical fiber SDI
• SDI video rates: SDI video connections are switchable between standard definition and high definition
• SDI video sampling: 4:2:2
• SDI audio sampling: television standard sample rate of 48 kHz and 24-bit
• SDI color precision: 4:2:2
• SDI color space: YUV
• SDI auto switching: automatically detects SD, HD or 3G-SDI
• ASI support: yes

 Operating systems

• Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan or later, Windows 8.1 or Windows 10

Power requirements

• Power consumption: 3.84 W
• Operational voltage range: 12 V_DC

Environmental specifications

• Operating temperature: 0 to 40 °C
• Storage temperature: -20 to 45 °C
• Relative humidity: 0 to 90% non-condensing

 Physical specifications

• Dimensione: 110 x 59 x 23 mm
• Weight: 210 g
