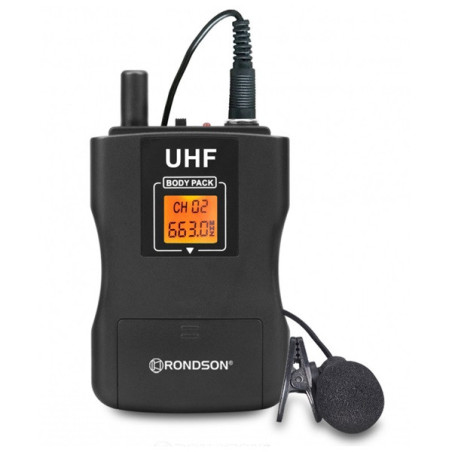

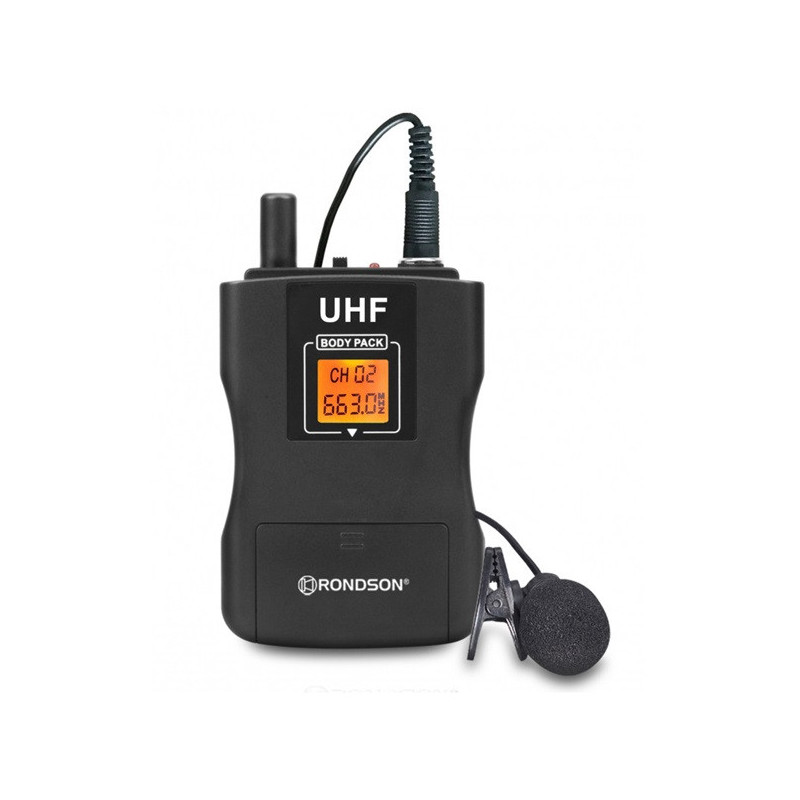

BE-1020BP-1 - 664.1 MHz bodypack transmitter with lavalier and headworn

Technical characteristics

• Bodypack wireless transmitter with lavalier and headworn microphones
• PLL synthesizer
• Frequency stability: ±10 ppm
• RF power: 10 mW
• 50 m open areas range range
• Modulation type: FM
• Frequency deviation: ±48 kHz
• Frequency response: 50 - 15,000 Hz
• Dynamic range: > 110 dB
• Easy-to-read LCD displays
• Connector: mini-XLR-3M
• Power supply: 2 x 1.5 V AA
• Consumption: 100 mA
• Dimensions: 58 x 18 x 100 mm
• Material: plastic
