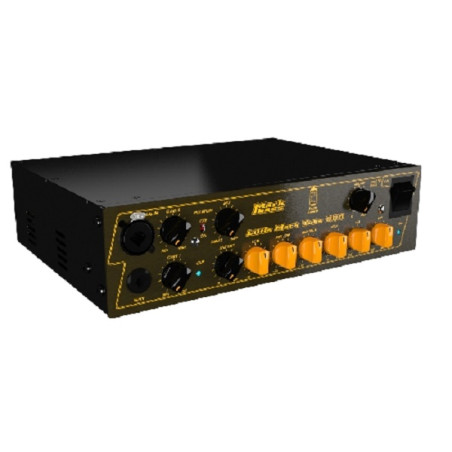

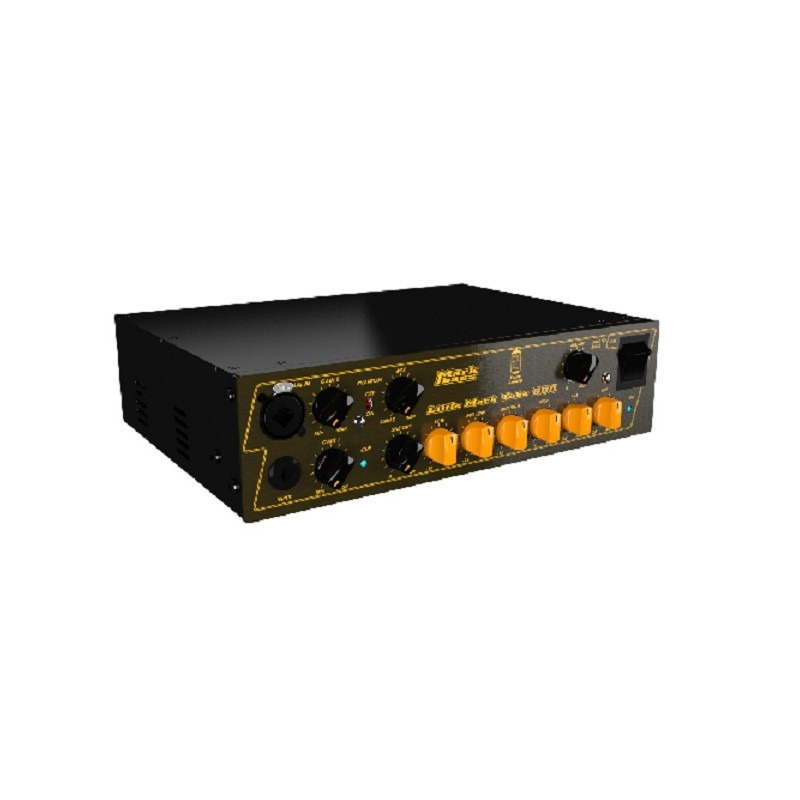

LITTLE MARK TUBE 800

LITTLE MARK TUBE 80

800W@4ohm / 500W@8ohm; digital power, tube and solid state preamp, pre/post EQ switch, line out level

control, mute, phantom power

TECHNICAL SPECS

INPUTS

INPUT 1: impedance 500 Kohm, max. voltage 15 Vpp

INPUT 2: (Balanced XLR/1/4" combo)

BALANCED: impedance 500 Kohm, max. voltage 15 Vpp, phantom power 48V

EFFECT RETURN: impedance 33 Kohm, max. voltage 10 Vpp

CONTROLS

GAIN 1: -60 dB to +23 dB range

GAIN 2: -60 dB to +23 dB range

MIX: mixes tube and solid state gain

MASTER VOLUME

LINE OUT LEVEL

GROUND LIFT (switch on rear panel)

PRE/POST EQ (switch on rear panel)

MUTE (push/pull on master knob)

EQUALIZATION

LOW: center frequency 40 Hz; level: ±16 dB

LOW MID: center frequency 360 Hz, level: ±16 dB

HIGH MID: center frequency 800 Hz, level: ±16 dB

HIGH: center frequency 10 kHz, level: ±16 dB

VPF (Variable Pre-shape Filter) center frequency 380 Hz

VLE (Vintage Loudspeaker Emulator) frequency range 250 Hz-20 kHz

OUTPUTS

LINE OUT: balanced XLR, max. voltage 20 Vpp

EFFECT SEND: unbalanced, max. voltage 20 Vpp (pre-EQ)

TUNER OUT: unbalanced, max. voltage 2 Vpp

SPEAKER OUT: speakon/1/4" combo, 1/4"

OTHER

WEIGHT: 6.61 lbs / 3 kg

WIDTH: 10.87 in. / 27.6 cm

DEPTH: 9.84 in. / 2.5 cm

HEIGHT: 3.27 in. / 8.3 cm

OUTPUT POWER: 800W RMS @ 4 ohms / 500W RMS @ 8 ohms

POWER REQUIREMENT: 100/120V; 230V; 240V - 50/60Hz (Voltage is factory preset according to region of sale)
