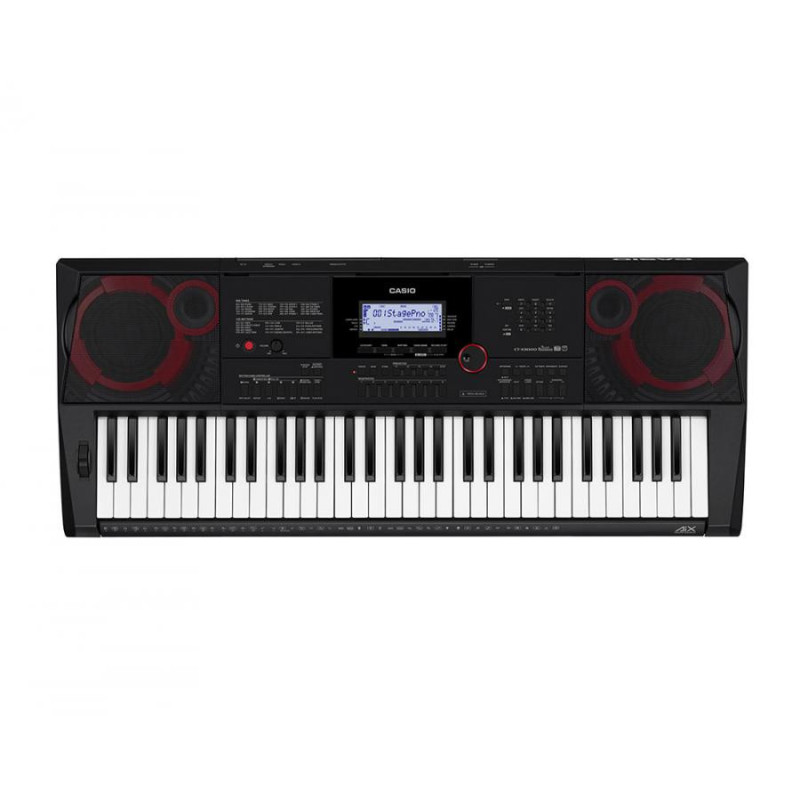

CASIO CT-X3000

Fonte d’ispirazione per arrangiamenti eccezionali

L’innovativo generatore sonoro AiX del modello CT-X3000 garantisce il massimo realismo di suoni e ritmi. Con il nuovo sistema sonoro con 2 altoparlanti da 6 Watt e le innumerevoli funzioni che rendono semplice e rapido creare i vostri arrangiamenti, il modello CT-X3000 è un vero talento universale, perfetto per studiare e comporre nella comodità della propria casa.

Nuovo potente Generatore Sonoro AiX

4 pad per la riproduzione delle frasi

2 prese per i pedali, inclusa 1 presa per pedale di espressione

Ingresso Audio, Porte USB to Host, USB to Device

Scheda Tecnica

Keyboard

61 keys

Touch response

3 types, off

Maximum Polyphony

64 notes (32 for certain tones)

Tones

Sound Source: AiX

Built-in tones: 800

User tones: 100

Functions: Layer, Split

Digital effects

Reverb: 24 types, off

Chorus: 12 types, tone

Delay: 15 types, tone

DSP: 100 types, DSP tones

Master effects

Equalizer (10 Presets)

External input effects

Center cancel (vocal cut) for input from the audio in jack

Metronome

Beats per measure: 0 (accented tone off), 1 to 16

Tempo range: 20 to 255

Song bank

Demo song: 3

Built-in songs: 30

User-recorded songs: 10

USB Flash Drive SMF files

Playback of standard MIDI files (SMF format 01/1), CASIO MIDI files (CMF format) on a USB flash drive is supported.

USB audio playback

Playback of audio files on a USB flash drive is supported.

Supported file formats: WAV, 44,1 kHZ 16 Bit

Other functions: Center cancel (vocal cut)

Auto accompaniment

Built-in rhythms: 235

User rhythms: 50

Music presets

310

One touch presets

235

Phrase Pads

Number of pads: 4

User Phrases: 100 (4 phrases x 25 pads)

Editing mode: Copy, delete, phrase editing

Mixer functions

Affected parts: Sound source parts, microphone input part

Parameters: Part on/off, volume, pan reverb send, chorus send, delay send

Registration

128 setups (8 setups x 16 banks), registration sequence

Tone editing

Preset tone editing, DSP editing. Memory for storage of edited tones (up to 100)

Internal rhythm editing

New rhythm creation, rhythm editing Memory for storage of created/edited rhythms (up to 50)

MIDI recorder

Real-time recording, playback

Keyboard play: 10 songs, 17 tracks (1 system track, 16 solo tracks)

Memory capacity: approximately 40.000 notes (per song)

Editing mode: Song editing, track editing, event editing, step input

Other functions: Overdubbing, punch-in recording

Controllers

Pitch bend wheel, SUSTAIN button, PORTAMENTO button

Other functions

Transpose: ± 1 octave (-12 to 0 to + 12 semitones)

Octave shift: Upper 1/ Upper 2/ Lower 1/ Lower 2, ± 3 octaves

Tuning: A4 = 415,5 to 465,9 Hz (initial default: 440,0 Hz)

Part coarse tune: For each keyboard part, ± 2 octaves (-24 to 0 to + 24 semitones)

Part fine tune: For each keyboard part, ± 99 cents

Preset scales: 17 preset scales, scale fine tuning

Auto harmonize: 12 types

Arpeggiator: 150 types

MIDI

16-multi-timbre received, GM Level 1 standard

Inputs/Outputs

USB flash drive port: Type A

USB port: Type B

Pedal jack 1: Standard jack (sustain, sostenuto, soft, rhythm)

Pedal jack 2, expression jack: Standard jack (expressio jack)

Phones/Output jack: Stereo standard jack

Audio input jack: Stereo mini jack (Input impedance: 9 kΩ, input sensitivity: 200 mV)

Power jack

DC 12 V

Power supply

2-way

Batteries: 6 x D-size alkaline batteries

Battery life: approximately 10 hours continuous operation on alkaline batteries

AC adaptor: AD-A12150LW

Auto power off: approximately 30 minutes after last operation; can be disabled

Speakers

10 cm x 2 (output: 6 W + 6 W)

Power consumption

12 V - 8 W

Dimensions

94,8 x 38,4 x 11,6 cm

Weight (without batteries)

approximately 6,9 kg (without batteries)
