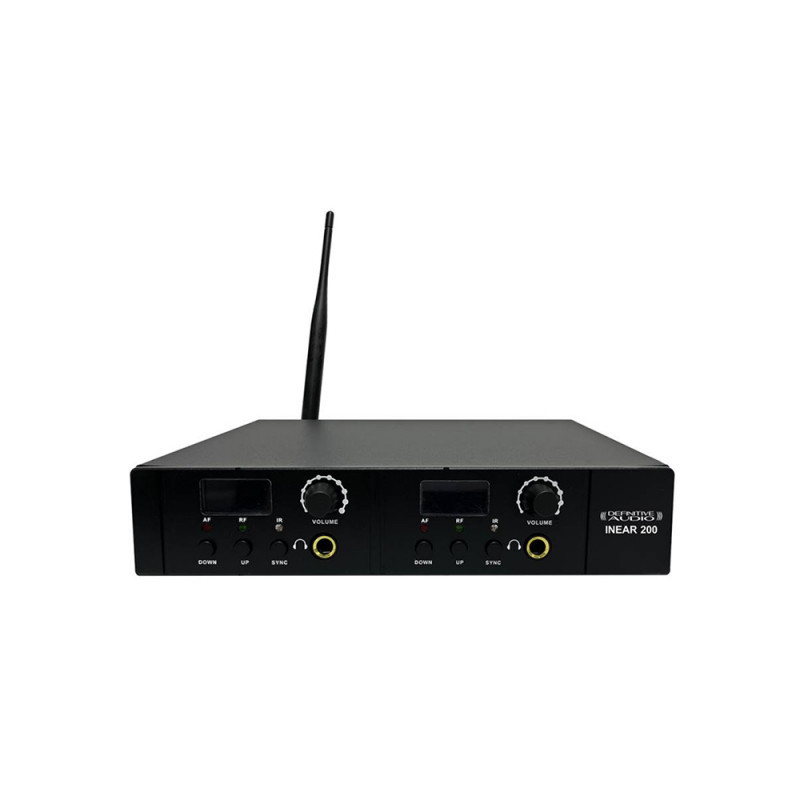

DEFINITIVE AUDIO INEAR 200

Il sistema INEAR200 è composto da un trasmittore doppio in formato rack 1U, due ricevitori bodypack compatti e cuffie in-ear che consentiranno a cantanti, musicisti o relatori di avere, sul palco, feedback audio di qualità irreprensibile con completa libertà di movimento. È possibile utilizzare fino a 8 sistemi contemporaneamente.

SPECIFICHE TECNICHE

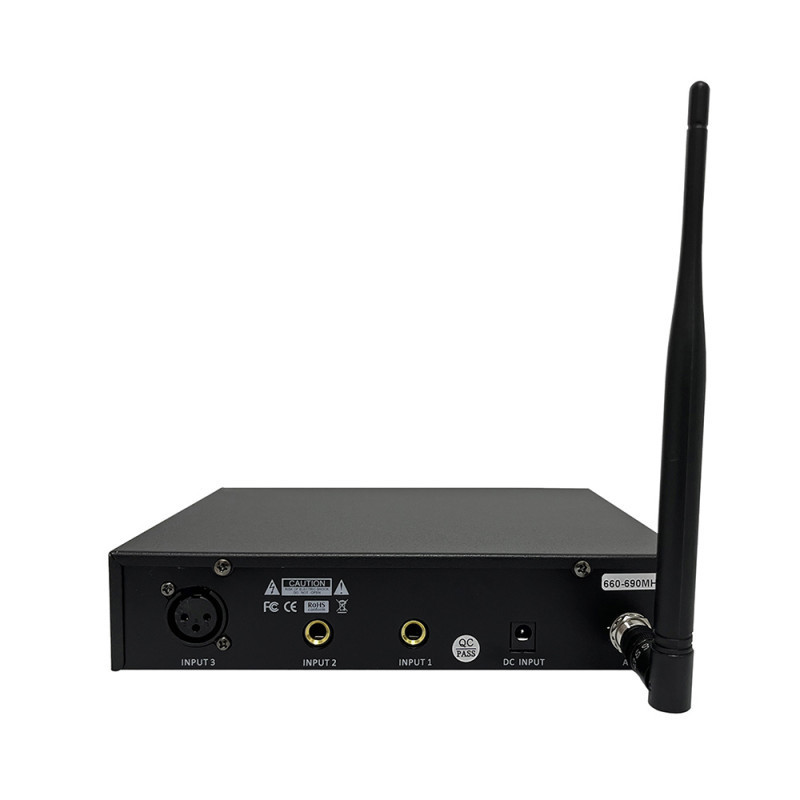

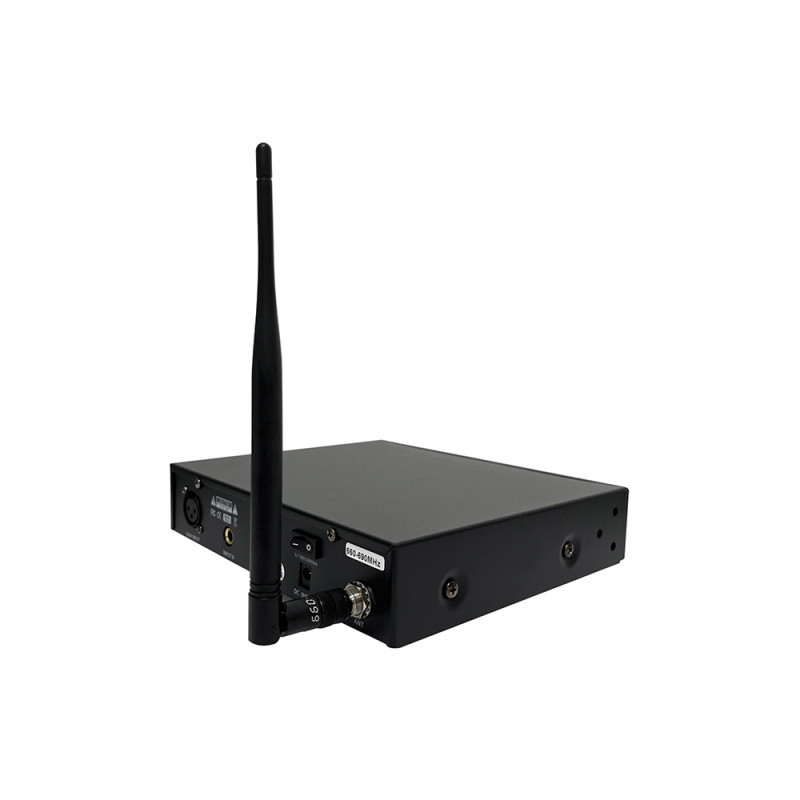

Transmitter box:

• UHF frequency range: 600 - 937 MHz – stereo transmission
• Number of channels: 16
• Output power: 10 m W
• Bandwidth: 60 Hz – 17 kHz ±3 dB
• THD: <0.5% at 1 kHz
• Audio input: 2 x unbalanced 6.35 mm jack or 1 x balanced XLR
• Audio output: 2 x 6.35 mm stereo jack on the front panel
• Backlit LCD display
• TNC antenna
• Range: up to 50 m in free field
• Bracket for rack installation included
• DC 12-18 V / 1 A power supply
• Dimensions: 212 x 177 x 44 mm
• Weight: 1 kg

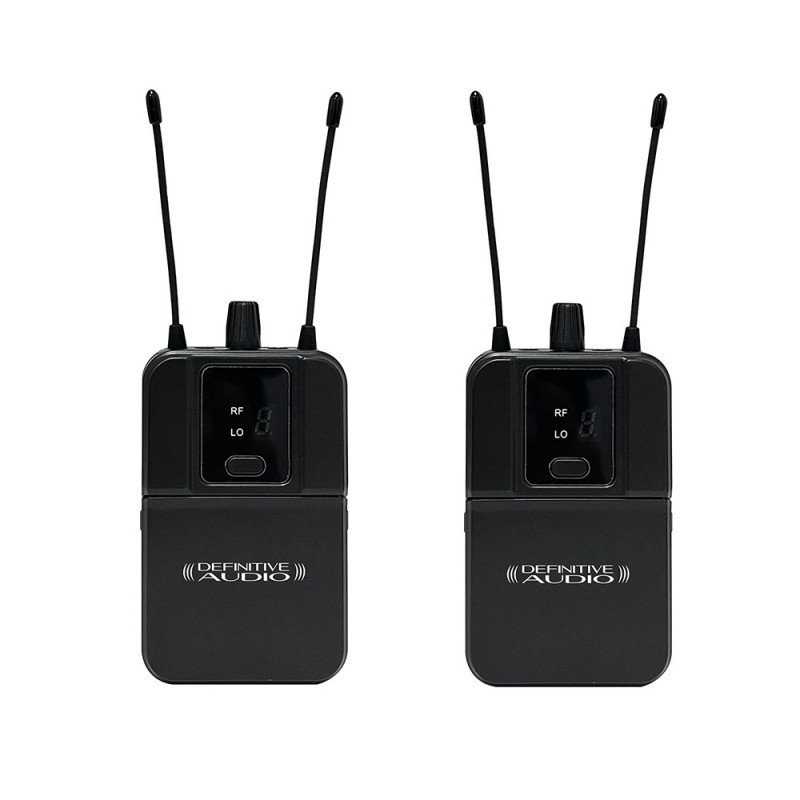

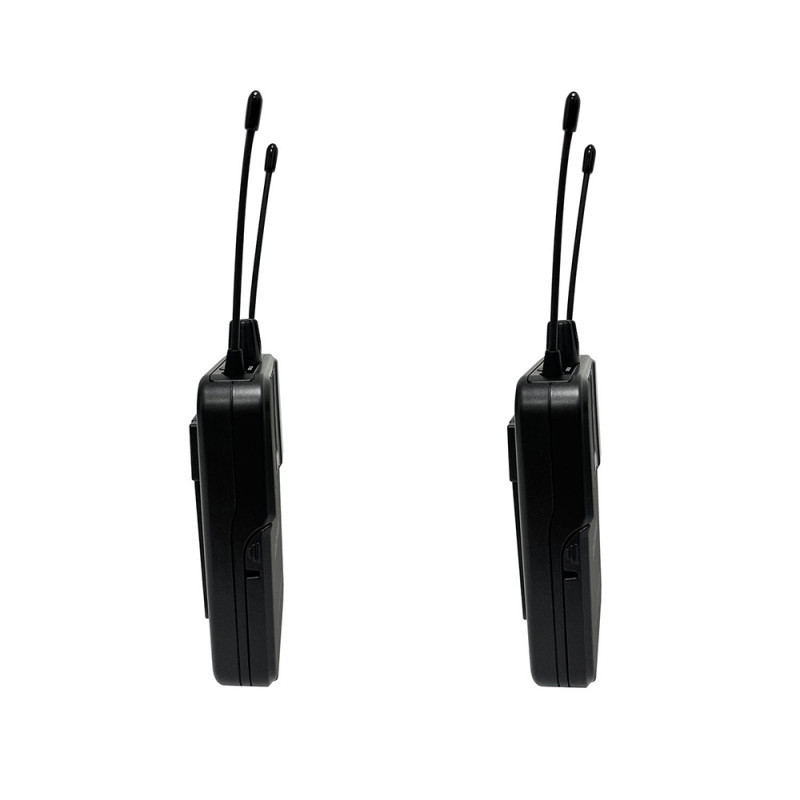

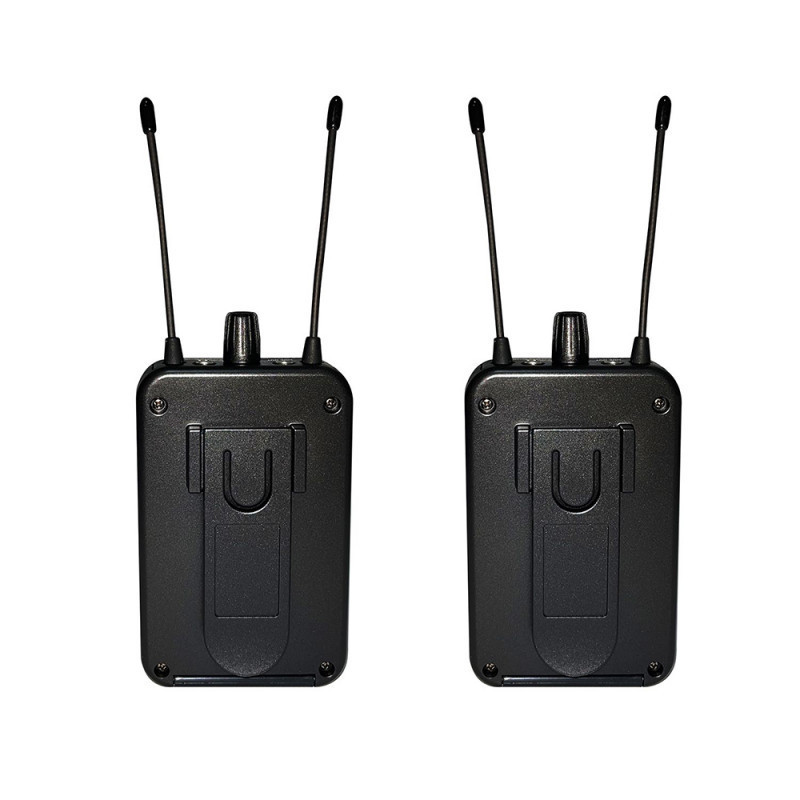

Belt receiver

• UHF frequency range: 600-937 MHz – mono reception
• Number of channels: 16
• Audio output: 1 x 3.5 mm stereo jack
• IR synchronization
• LED display of the selected channel
• Powered by 2 x AA batteries
• Autonomy: about 8 hours
• Dimensions: 96 x 62 x 21 mm
• Weight: 50 g (without batteries)

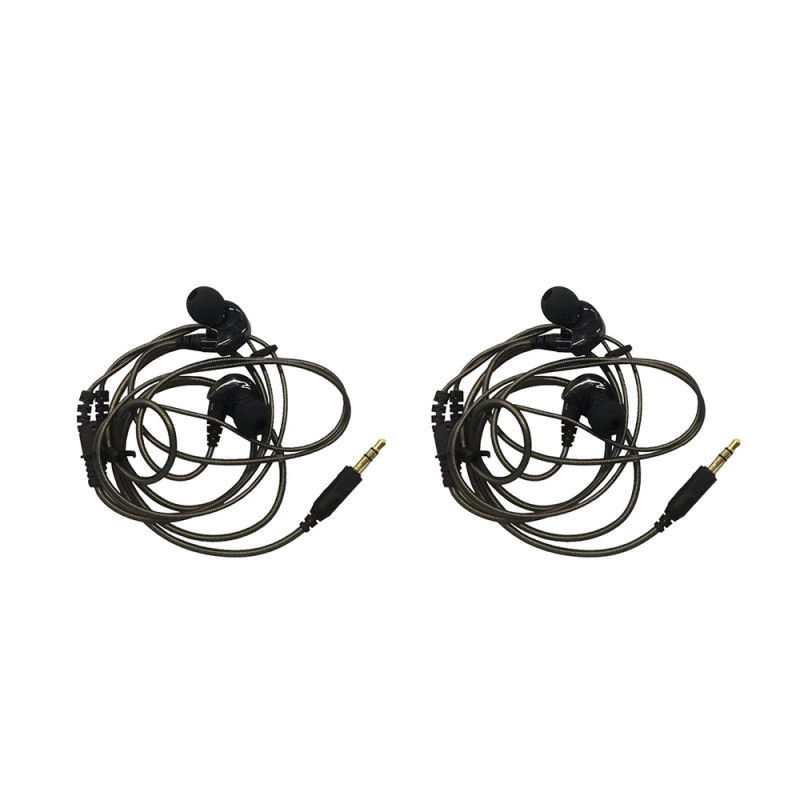

Headphone

• Headphone diameter: 10 mm
• Impedance: 16 ohm
• Sensitivity: 102 ±3 dB
• Bandwidth: 20 – 20 kHz
• Cable length: 1.1 m
• Connector: 3.5 mm stereo jack
