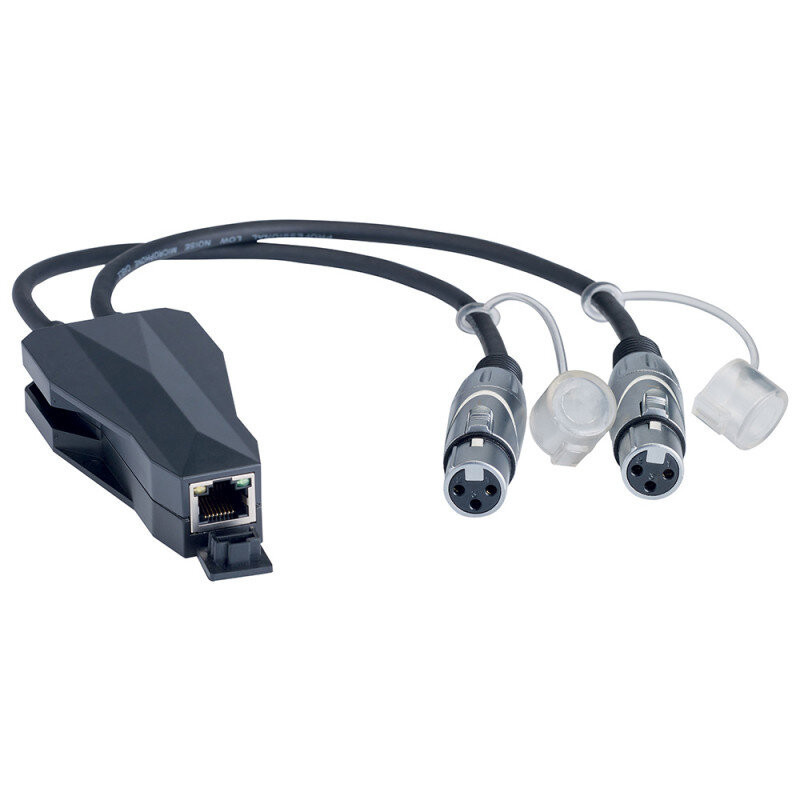

AUDIOPHONY ConvD2In

SPECIFICHE TECNICHE

Technical characteristics

Analog audio

• Maximum input level: +18 dBu (balanced)
• Input impedance: 20 kohm (balanced) or 10 kohm (unbalanced)
• Frequency response: 20 Hz to 20 kHz (± 5 dB)
• Dynamic range: > 100 dB
• SNR: > 100 dB
• THD: < 0.05% @ +4 dBu

Dante's audio

• Number of channels 2 output channels
• Sampling frequency: 44.1 kHz, 48 kHz
• Rate: 24 bits
• Network speed: 100 MBs

Network type

• Audio Dante, AES67 RTP

Electrical characteristics

• Consumption: < 2 W
• Power over Ethernet: Class 1 802.3af PoE PD compatible

Connectors

• Input connectors: 2 x 3-pin XLR plugs
• Dante connector: 1 port RJ45

Materials

• Black ABS housing
• Cable: black PVC audio cable, Ø 6 mm

Operating environment

• Temperature: -5 to +60 °C

Mechanical characteristics

• Insertion and withdrawal force: 10 - 30 N
• Net weight: 165 g
