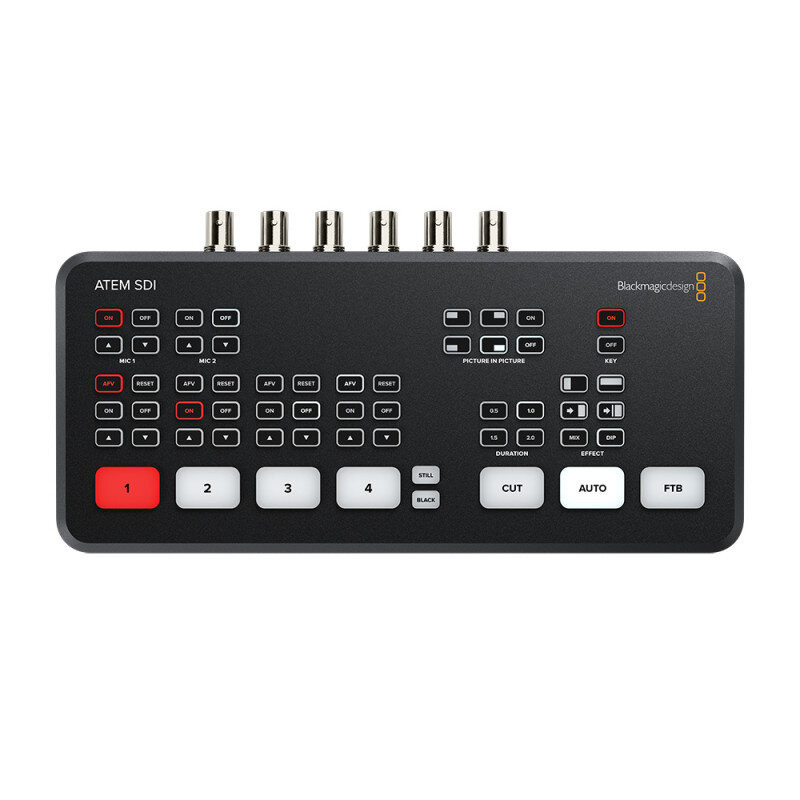

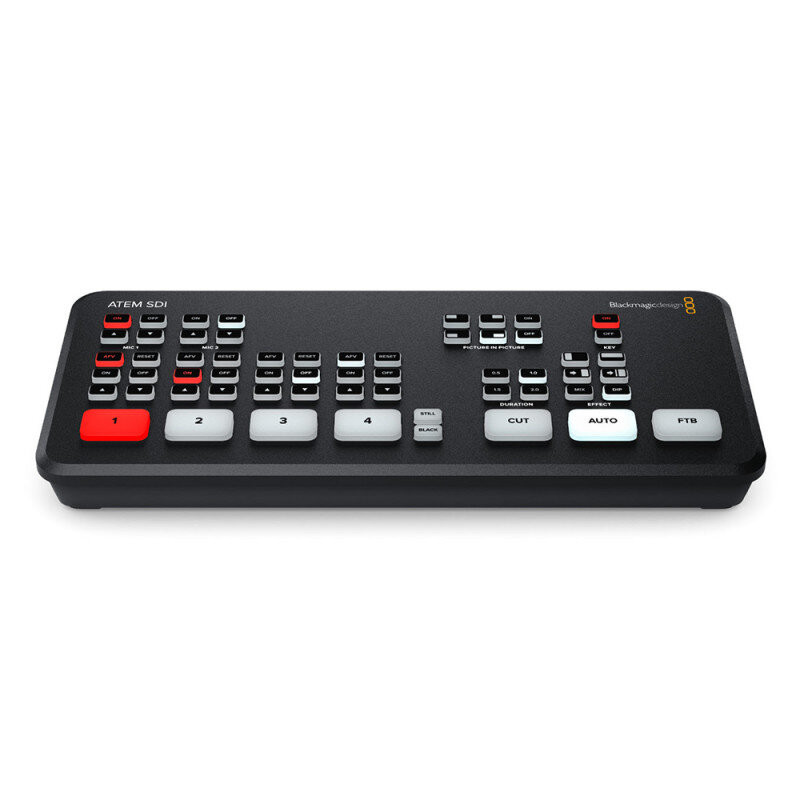

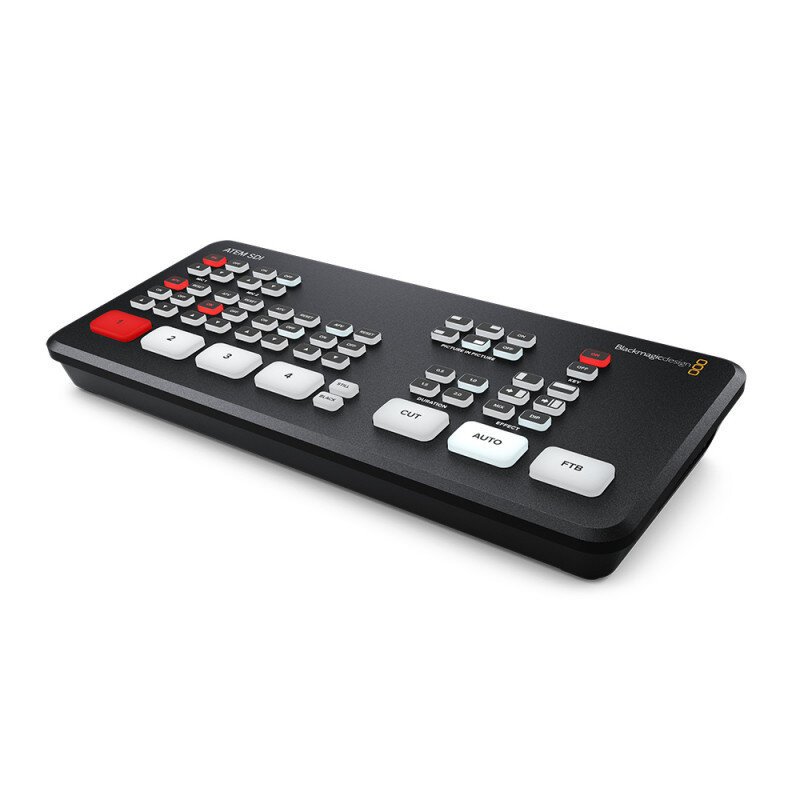

BLACKMAGIC DESIGN ATEM SDI

ATEM SDI è uno switcher compatto per il live streaming: si configura in un attimo ed è facile da usare. Offre 4 ingressi SDI con conversione di standard, USB per webcam, 2 uscite SDI, mixer audio Fairlight con EQ e dinamica, DVE per immagine nell’immagine, effetti per transizioni, chiave cromatica per green screen, Media Pool da 20 fotogrammi per i titoli  e ATEM Software Control.

SPECIFICHE TECNICHE

Technical characteristics

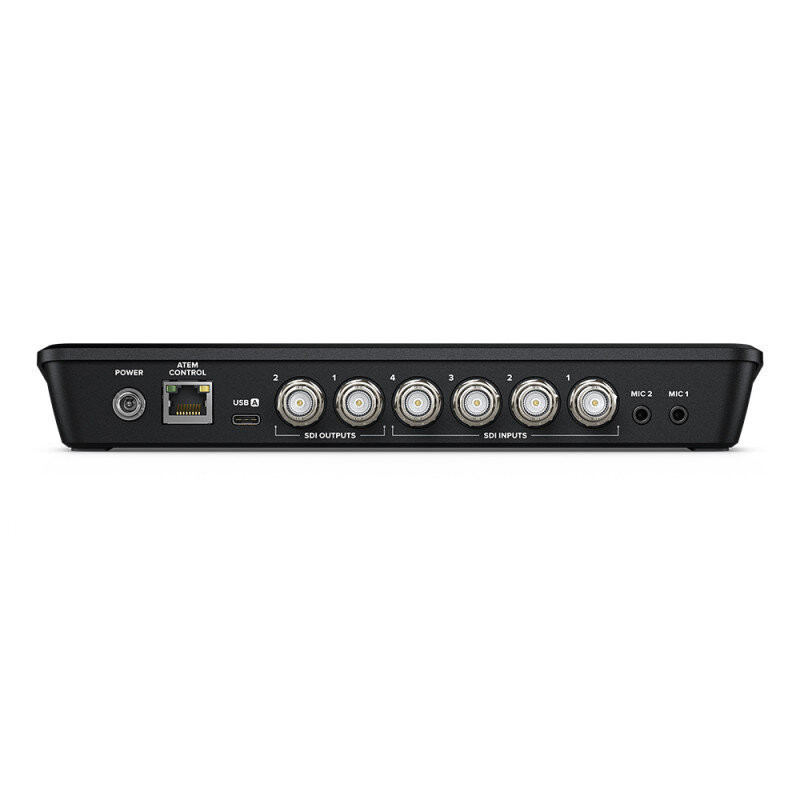

Connections

• Total video inputs: 4
• Total outputs: 3
• Total aux outputs: 2
• Total audio inputs: 2 x 3.5 mm stereo mini-jack
• Total audio outputs: none, embedded audio only
• SDI video inputs: 4 x 3G-SDI, 10-bit HD switchable | 2 channel embedded audio
• Video input Re-Sync: on all 4 SDI inputs
• Frame rate and format converters: on all 4 SDI inputs
• SDI program outputs: 2
• Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection
• Computer interface: 1 x USB Type-C 2.0 for webcam out, software control, software updates and panel connection

Standards

• HD video input standards: 720p 50, 720p 59.94, 720p 60   |  1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 0, 1080p 59.94, 1080p 60   |  1080i 50, 1080i 59.94, 1080i 60
• HD vdeo output standards: 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60
• Video streaming standards: 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60
• Video sampling: 4:2:2 YUV
• Color precision: 10-bit
• Color space: rec 709
• Colorspace conversion: hardware based real time

Product specifics

• Upstream keyers: 1
• Downstream keyers: 1
• Advanced chroma keyers: 1
• Linear / luma keyers: 2
• Transition keyer: DVE only
• Total number of layers: 5
• Pattern generators: 1
• Color generators: 2
• DVE with borders and drop shadow: 1
• Interface: minimum monitor resolution of 1366 x 768

Audio

• Audio mixer: 6 input x 2 channel mixer. Selectable ON / OFF / Audio-Follow-Video per channel plus separate gain control per channel. Level and poeak metering. New Fairlight audio enhancements: compressor, gate, limiter, 6 bands of parametric EQ. Master gain control.
• Analog input: unbalanced stereo
• Analog input delay: up to 8 frames
• Input impedance: 1.8 k
• Max input level: +6 dBV
• MIC Plug in power: available on both 3.5 mm mini-jack connections

Media player

• Media players: 1
• Channels: fill and key for each media player
• Media pool still image capacity: 20 with fill and key
• Media pool still image format: PNG, TG A, BMP, GIF, JPEG and TIFF

Control

• Control panel: built in control panel. Software control panel included. Supports optional hardware panel.
• Control panel connection: Ethernet supports 10/100 BaseT. Allows direct connection between panel and chassis, or via network. Also used for updating the software. ATEM SDI supports direct USB-C connection.
• Control panel compatibility: includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel and ATEM 2 M/E Broadcast Panel
• Control panel included: ATEM Software Control Panel included free for Mac 11.0 Big Sur, Mac 12.0 Monterey or later and Windows 10 or 11

Software

• Software updates: using USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility
• Configuration: set via ATEM software control panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis

Operating Systems

• Mac 11.0 Big Sur, Mac 12.0 Monterey or later
• Windows 10 and 11

Power requirements

• Power supply: 1 x external 12 V_DC power supply
• Power usage: 18 W

Environmental specifications

• Operating temperature: 5 to 40 °C
• Storage temperature: -10 to 60 °C
• Relative humidity: 0% to 90% non-condensing

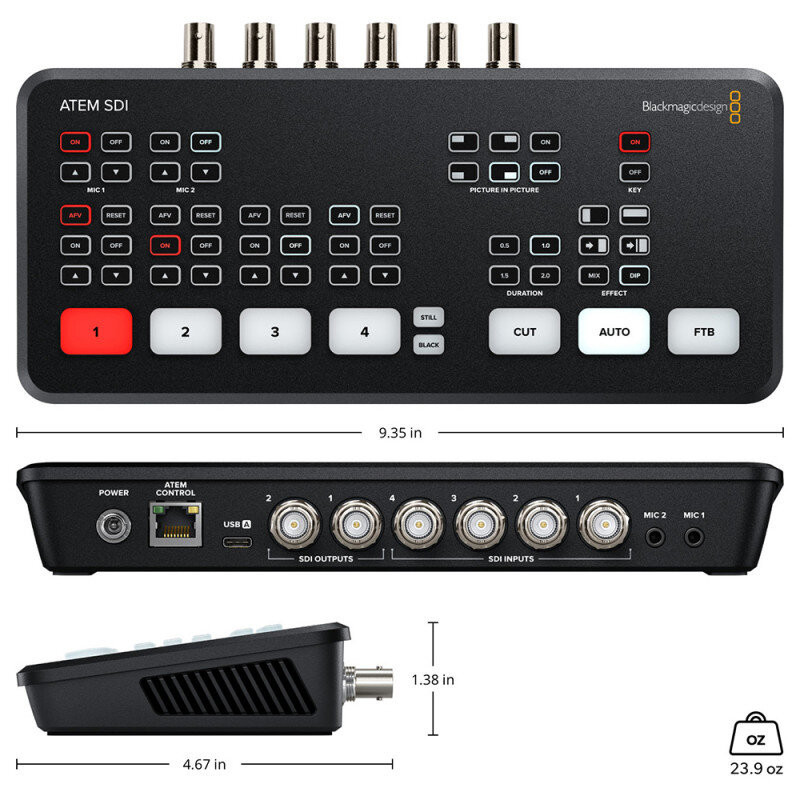

Physical specifications

• Dimensions: 370 x 39.6 x 151 mm
• Weight: 1.42 kg

What's in the box

• ATEM SDI
• External 12 V_DC power supply with international socket adapters
