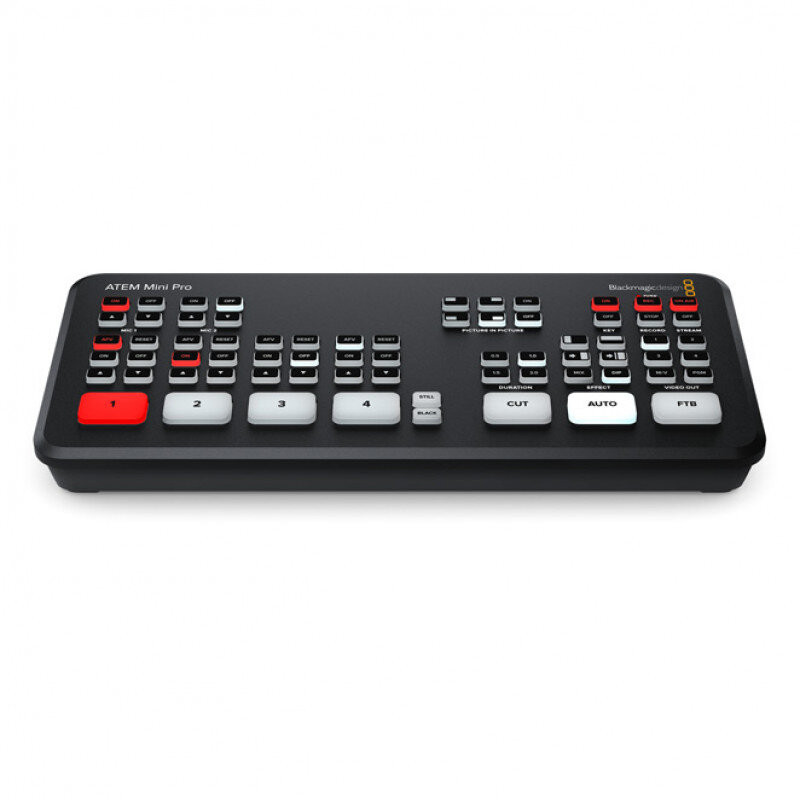

BLACKMAGIC DESIGN ATEM Mini Pro

ATEM Mini Pro di Blackmagic Design è la soluzione user-friendly per lavorare in modo veloce ed efficiente. Dispone di 4 ingressi HDMI standard, uscita webcam USB, uscita HDMI, mixer audio Fairlight con EQ e dinamica, DVE per picture in picture, effetti di transizione, green screen chroma key, 20 still media pool per titoli e ATEM Software Control gratuito. Inoltre, permette la registrazione diretta su dischi flash USB in H.264 e lo streaming diretto via Ethernet su YouTube Live e altro. Si ottiene anche un multiview con 4 telecamere, media, preview e program più lo stato di registrazione, streaming e audio.

SPECIFICHE TECNICHE

Technical characteristics

Connections

• Total video inputs: 4
• Total outputs: 2
• Total aux outputs: 1
• Total audio inputs: 2 x 3.5 mm stereo mini-jack
• Total audio outputs: none, embedded audio only
• Time Code connection: none
• HDMI video inputs: 4 x HDMI type A, 10-bit HD switchable, 2 channel embedded audio
• Video input re-sync: on all 4 HDMI inputs
• Frame rate and format converters: on all 4 HDMI inputs
• HDMI program outputs: 1
• Ethernet: 1 x 10/100/1000 BaseT for live streaming, software control, software updates and panel connection
• Computer interface: 1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection

Standards

• HD video input standards: 720 x 480p 50, 720 x 480p 59.94, 720 x 480p 60, 1920 x 1080p 23.98, 1920 x 1080p 24, 1920 x 1080p 25, 1920 x 1080p 29.97, 1920 x 1080p 30, 1920 x 1080p 50, 1920 x 1080p 59.94, 1920 x 1080p 60, 1920 x 1080i 50, 1920 x 1080i 59.94, 1920 x 1080i 60
• HD video output standards: 1920 x 1080p 23.98, 1920 x 1080p 24, 1920 x 1080p 25, 1920 x 1080p 29.97, 1920 x 1080p 30, 1920 x 1080p 50, 1920 x 1080p 59.94, 1920 x 1080p 60
• Video streaming standards: 1920 x 1080p 23.98, 1920 x 1080p 24, 1920 x 1080p 25, 1920 x 1080p 29.97, 1920 x 1080p 30, 1920 x 1080p 50, 1920 x 1080p 59.94, 1920 x 1080p 60
• Video sampling: 4:2:2 YUV
• Color precision: 10-bit
• Color space: REC 709
• HDMI input resolutions from computers: 1280 x 720p 50, 59.94, 60 Hz; 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 Hz; 1920 x 1080i 50, 59.94, 60 Hz
• Colorspace conversion: hardware based real time

Product specifics

• Upstream keyers: 1
• Downstream keyers: 1
• Advanced chroma keyers: 1
• Linear/luma keyers: 2
• Transition keyer: DVE only
• Total number of layers: 5
• Pattern generators: 1
• Color generators: 2
• DVE with borders and drop shadow: 1
• Interface: minimum monitor resolution of 1366 x 768

Audio

• Audio mixer: 6 input x 2 channel mixer
• Channel control: selectable ON / OFF /Audio-Follow-Video per channel plus separate gain control
• Metering: level and peak metering
• Fairlight enhancements: compressor, gate, limiter, 6 bands of parametric EQ
• Master gain control: yes
• Analog input: unbalanced stereo
• Analog input delay: up to 8 frames
• Input impedance: 1.8 kohm
• Max. input level: +6 dBV
• MIC plug-in power: available on both 3.5 mm mini jack connections

Control

• Control panel: built-in control panel. Software control panel included
• Control panel connection: Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Pro also supports direct USB-C connection
• Software updates: via USB or Ethernet

Streaming

• Streaming: direct streaming via Ethernet to YouTube Live, Facebook, Twitch and more
• Streaming inputs: 1 x RJ45 Ethernet
• Streaming formats: RTMP

Recording

• Recording: direct recording to USB flash disks in H.264
• Recording formats: H.264 with AAC audio in .mp4 files
• Recording media: USB flash disks
• Recording inputs: 1 x USB Type-C 3.1 Gen 1

Multiview

• Multiview monitoring: 1 x HDMI output
• Multiview features: 4 camera views, media player, preview and program plus status of recording, streaming and audio

Media

• Media players: 1
• Channels: fill and key
• Still store: 20
• Media formats: PNG, TGA, BMP, GIF, JPEG and TIFF

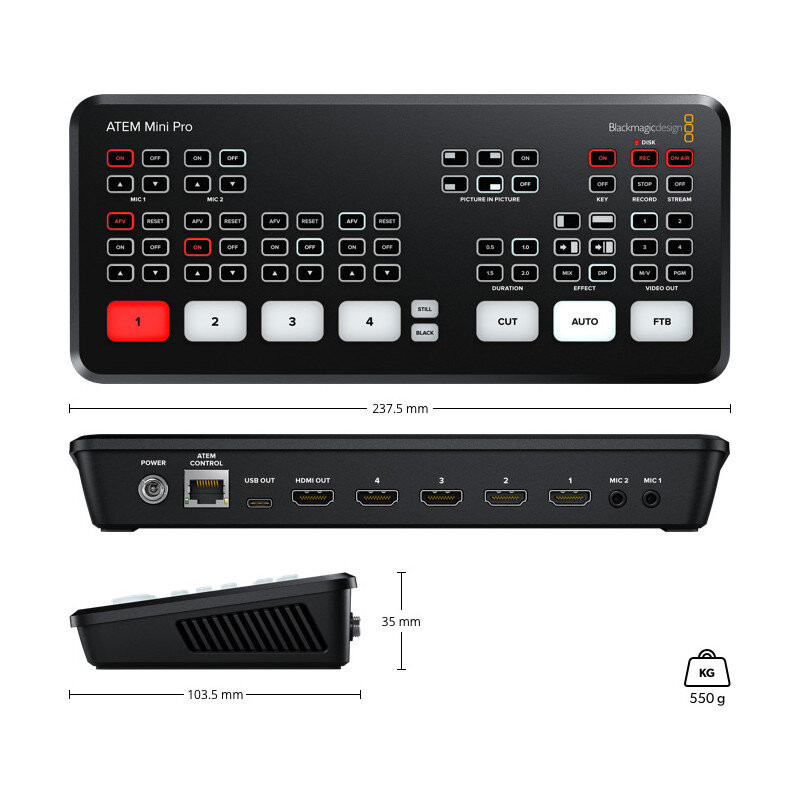

Physical specifications

• Dimensions: 23.75 x 10.35 x 3.5 cm
• Weight: 550 g

What's included

• ATEM Mini Pro
• External 12 V power supply with locking connector and international socket adapters
