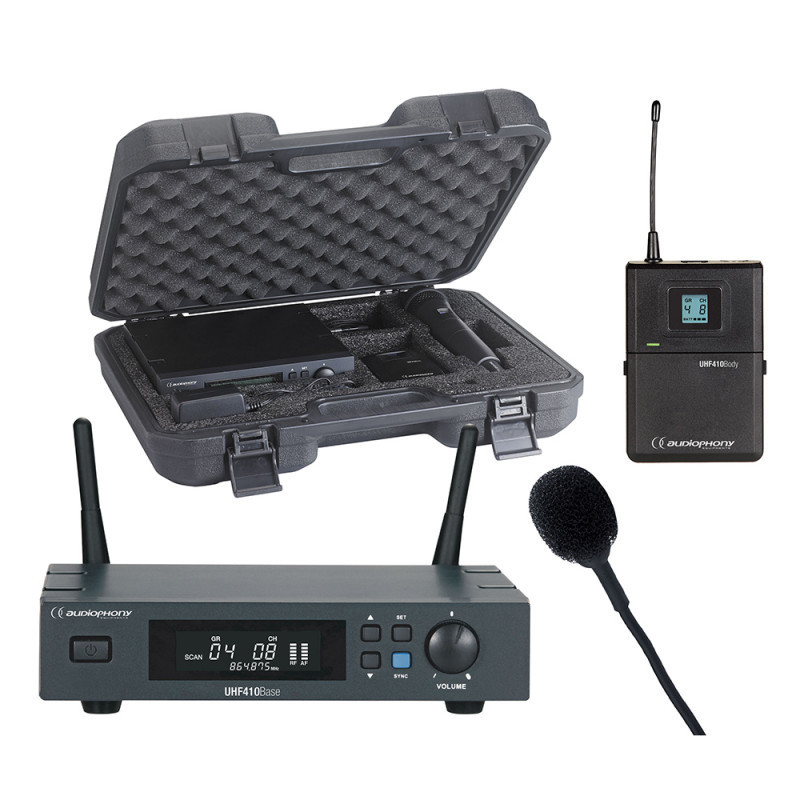

AUDIOPHONY PACK-UHF410-Lava-F5

SPECIFICHE TECNICHE

UHF410-Base F5 receiver
• True Diversity Receiver
• Frequency range: UHF 514~564 MHz
• Frequencies: 997 programmed,With Auto-scan function
• Channel presets: 8 groups, 16 compatible channels in each group
• Channel Selection Mode: Manual, Tact Switch, Auto-Scan, SYNC
• LCD display: frequency, group, channel, RF & AF
• Audio outputs: XLR3-M balanced and 6.35 TS-F jack
• Output levels: line or micro
• Oscillator: PLL SyntheDimensionsr
• Frequency stability: ± 0.005%.
• Modulation mode: FM
• H.H.T.: <1% (@ 1 kHz)
• Audio Frequency Response: 80 Hz to 18 kHz
• Volume control by rotary switch on the front panel
• Squelch adjustment by rotary selector at the rear
• Detachable BNC antennas, many accessories available
• Power supply: 12 V_DC (adapter supplied)
• Current consumption: 260mA ± 10mA
• Dimensions: 200 x 42 x 183 mm (½U 19", rackable in pair)

BODYPACK TRANSMITTER
• True Diversity transmitter
• Frequency ranges: UHF 514~564 MHz
• Max power: 35 m W (max.)
• Frequencies: 997,With Auto-scan function
• LCD display: channel, battery level
• Mic input: mini XLR3-F
• Gain level: -20/-10/0dB
• Power supply: 2 x LR6/AA type 1,5V batteries (not supplied)

Lavalier microphone
• Sensitivity: -67 ±3dB
• Directivity: Omnidirectional
• Frequency response: 50 Hz à 10 kHz
• Max current: 10V
• Standard current: 1.5V
• Power consumption: 0.5 mA max.
• S/N ratio: More than 58dB
• Supplied accessory:Windshield and clip
• Connector: mini-XLR3-M
