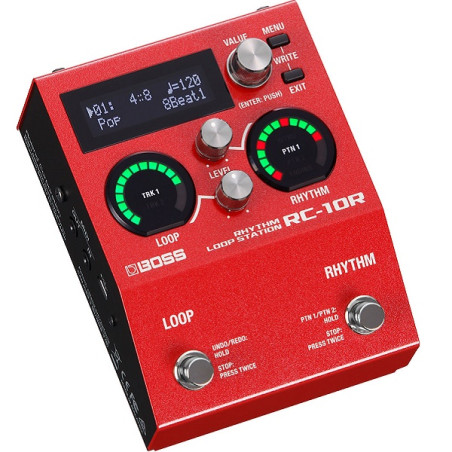

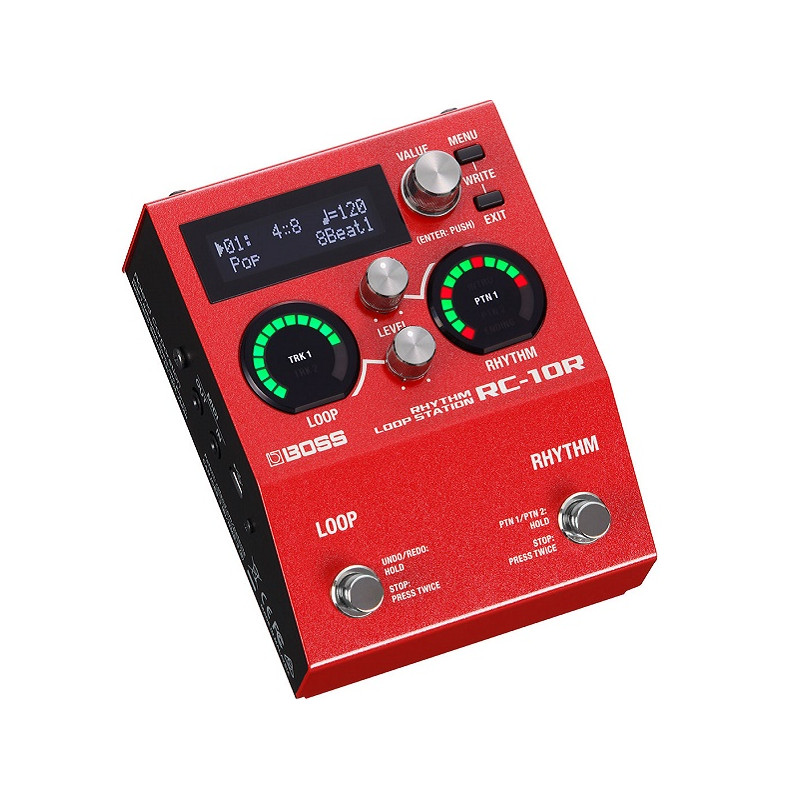

RC-10R Rhythm Loop Station

L’ISPIRAZIONE DIVENTA PERFORMANCE, ALL’ISTANTE

Combinando in un formato compatto loop costruiti sui brani e accompagnamenti ritmici interni, RC-10R offre nuove ispirazioni per le performance live, la composizione e l’esercizio quotidiano. Questa Loop Station di nuova generazione è concepita per la creazione in tempo reale, permettendovi di sviluppare spontaneamente musiche che si muovono e si evolvono grazie a due esclusive sezioni del brano, con introduzione e finale e “fill” ritmici. I controlli interni e gli indicatori visivi del loop consentono un funzionamento semplice e indipendente, mentre l’espansione del controllo può avvenire tramite interruttori a pedale esterni e via MIDI. Avete a disposizione una vasta libreria di ritmi in grado di coprire praticamente ogni genere musicale, e potete anche importare i vostri ritmi per personalizzare RC-10R per brani e stili specifici.

SPECIFICATIONS (LOOPER)

Sampling Frequency              44.1 kHz

AD/DA Conversion               32 bits

Processing                              32-bit floating point

Recording/Playback

Maximum Recording Time: Approx. 6 hours (stereo)
Maximum Phrase Memory: 99
Number of Tracks: 2
Data Format: WAV (44.1 kHz, 32-bit float, stereo)

SPECIFICATIONS (RHYTHM)

Rhythm Type                          280 types or greater

Rhythm Control                     Intro, Pattern 1, Pattern 1 Fill, Pattern 2, Pattern 2 Fill, Ending

Rhythm Kit                            16 types

Maximum Polyphony            24 voices

Effect                                     Reverb (only for rhythm part)

SPECIFICATIONS (COMMON)

Memory                                             99

Nominal Input Level                          INPUT A/MONO, B: -10 dBu

Maximum Input Level                       INPUT A/MONO, B: +8 dBu

Input Impedance                                INPUT A/MONO, B: 1 M ohm

Nominal Output Level                       OUTPUT A/MONO, B: -10 dBu

Maximum Output Level                    OUTPUT A/MONO, B: +8 dBu

Output Impedance                             OUTPUT A/MONO, B: 1 k ohms

Recommended Load Impedance       OUTPUT A/MONO, B: 10 k ohms or greater

Bypass                                               Buffered bypass

Controls                                             RHYTHM switch, LOOP switch
VALUE knob, RHYTHM LEVEL knob, LOOP LEVEL knob
MENU button, EXIT button

Display                                              16 characters x 2 lines LCD (with backlit)

Indicator                                            RHYTHM indicator, LOOP indicator

Connectors                                         INPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type CTL 1, 2/EXP jack: 1/4-inch TRS phone type MIDI (IN, OUT) jacks: stereo miniature type DC IN jack USB COMPUTER port: USB micro B type

Power Supply                                    AC adaptor

Current Draw                                     250 mA

Accessories

Owner's Manual
Leaflet "USING THE UNIT SAFELY"
AC adaptor
Rubber foot x 4

Options (sold separately)

Footswitch: FS-5U
Dual footswitch: FS-6, FS-7
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
TRS/MIDI connecting cable: BMIDI-5-35

SIZE AND WEIGHT

Width

101 mm
4 inches

Depth

138 mm
5-7/16 inches

Height (excluding rubber foot)

63 mm
2-1/2 inches

Height (including rubber foot)

65 mm
2-9/16 inches

Weight (excluding AC adaptor)

620 g
1 lbs 6 oz
