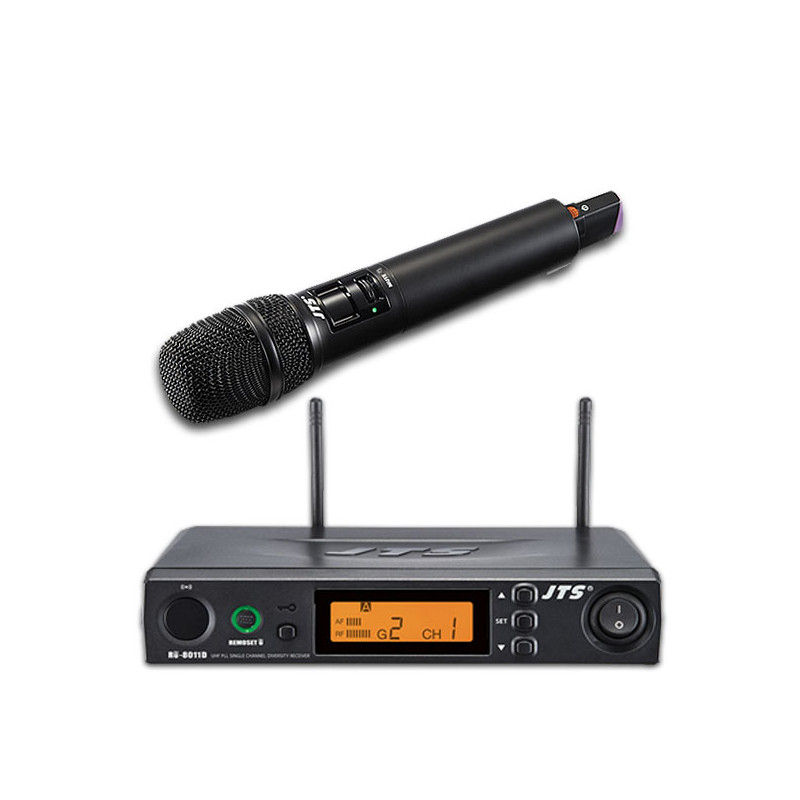

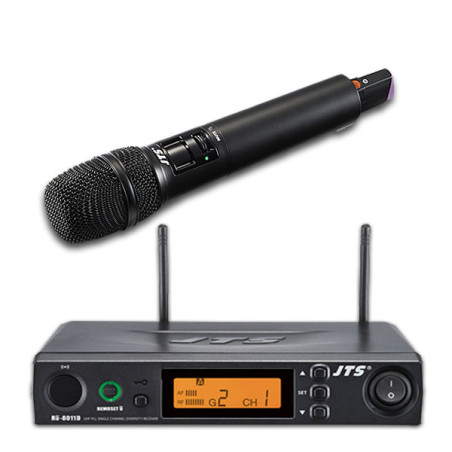

JTS RU-8011D con RU-850TH

RU-8011D+RU-850TH

Sistema UHF PLL wireless, diversity, a singolo canale larga banda

Sistema UHF PLL, con trasmissione diversity 2° generazione, composto da: radiomicrofono a mano con trasmettitore RU-850TH, ricevitore RU-8011. Distanza operativa 100m. larghezza di banda di 36 MHz. Ricerca automatica della frequenza di ricezione e sincronismo con il trasmettitore attraverso il pulsante Remoset. Display sul ricevitore. Funzioni presenti sul display: gruppo, canale, frequenza, livello di batteria, scan di frequenza, livello audio, volume, etc. Banda di Frequenza 624-694 MHz. Banda di frequenza 690 MHz-726 MHz.

Specifiche Tecniche

RU-8011D

• Frequency Preparation          PLL Synthesized Control
• Carrier Frequency Range       470~960 MHz
• Frequency Setting      REMOSET U
• Receiving Mode         Antenna Diversity
• Bandwidth      36MHz
• S/N Ratio        >105dB(A)
• T.H.D  <0.6%@1KHz
• Sensitivity      -95dBm,S/N>80dB
• Rejection Ratio          >80 dB
• Frequency Response  60Hz~15KHz±2dB
• Antenna Type Fixed Antenna
• Antenna Booster Power         None
• Display           LCD
• Display Contents        Group, Channel, Antenna A/B, Mute Display, AF Meter, RF Meter, Frequency Scan,
• Audio Level, Volume
• Controls          Power ON/OFF, Group, Channel, Mute Display, Frequency Scan (ON/OFF), Key Lock,
• Volume, Output Attenuation (XLR)
• Audio Output Level   Ref/ ±22.5KHz Dev@1KHz Tone
• ψ6.3 Phone Jack/ -10dBV
• XLR Jack/ -4dBV(Line) ˴ -24dBV(MIC)
• Audio Output Impedance      600Ω
• Squelch           Pilot Tone & Noise Mute
• Output Connector      1 independent balanced XLR and one Ø6.3mm unbalanced.
• Power Supply DC12~15V/300mA
• Dimension (mm)        212.3mm(W)* 38.3mm(H)* 144mm(D)
• Notes  Acutal product specifications may vary depending on region

RU-850TH

• Frequency Preparation          PLL Synthesized Control
• Carrier Frequency Range       470~960MHz
• Frequency Setting      REMOSET U(Receive)
• RF Outpus      Low / High
• Stability          <±10KHz@Fc
• Frequency Deviation ±48KHz
• Spurious Emissions   <-50dBc
• Function         Mute, Auto Power Off, Sensitivity Adjust, Low Battery
• Display           LED
• Controls          Power, Mute
• Battery            UM3, AA x2
