AUDIOPHONY PA BM-KIT

SPECIFICHE TECNICHE

Technical characteristics

Inputs

• Audio inputs: 2 (1 micro or line input and 1 line input)
• Type: 3.5 mm TRS-F mini-jack, Euroblock / Phoenix terminal block
• Phantom: 4.5 V 1 mA

Audio processor

• Compressor: variable 1:1 to 20:1
• Etching: 10 mS
• Descent: automatic 500 ms or 1500 ms
• Noise reduction: bandwith limits for 8 kHz total gain, 16 kHz to -6 dB
• Dynamic: > 60 dB
• THD+N: < 0.5% at 1 kHz

Output

• Type: current
• Loop resistance: 0,1 ohm to 1 ohm
• Peak current: 5 A
• RMS current: 3.5 A at 1 kHz
• Protection: thermal, short-circuit and start

Power supply

• Power supply: 12 V_DC 1.5 A
• Type: separated power block
• Mains systems: 230 V_AC 50/60 Hz
• Power: 20 W max.
• Fuse: thermal protection

Dimensions and weight

• BM-KIT (L x H x P): 92 x 52 x 18 mm
• Weight: 350 g

What's in the box

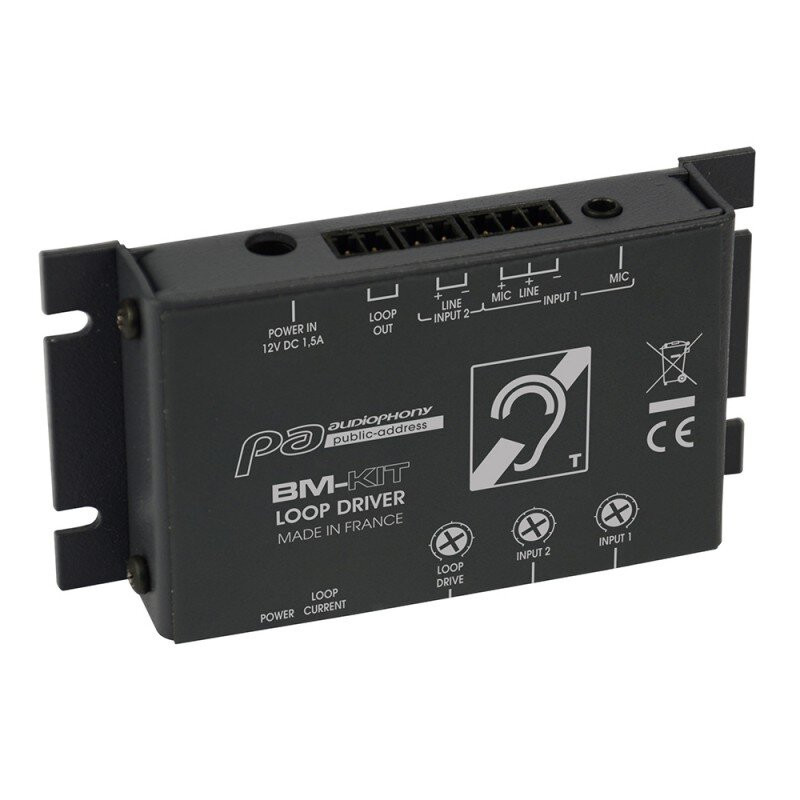

• 1 x  BM-KIT induction loop amplifier

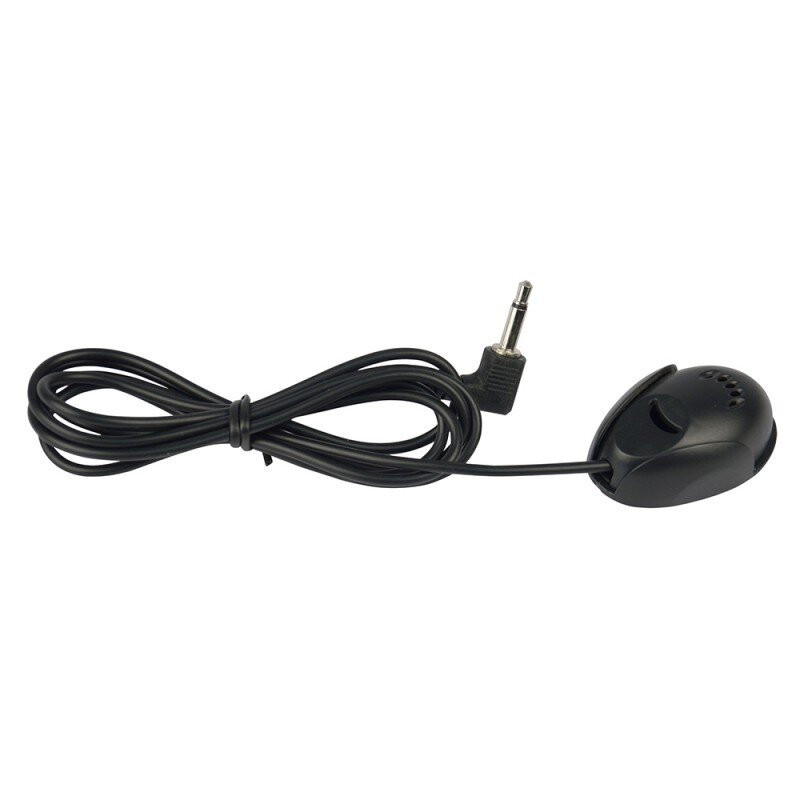

• 1 x surface microphone
• 1 x 12 V power supply + power cord
• 1 x loop adapter with cable
• x 6 adhesive clips for cables
• 2 x 2 points connectors
• 1 x 3 points connectors
• 2 x stickers “Adapted for hearing impaired area”
• 1 x user guide
