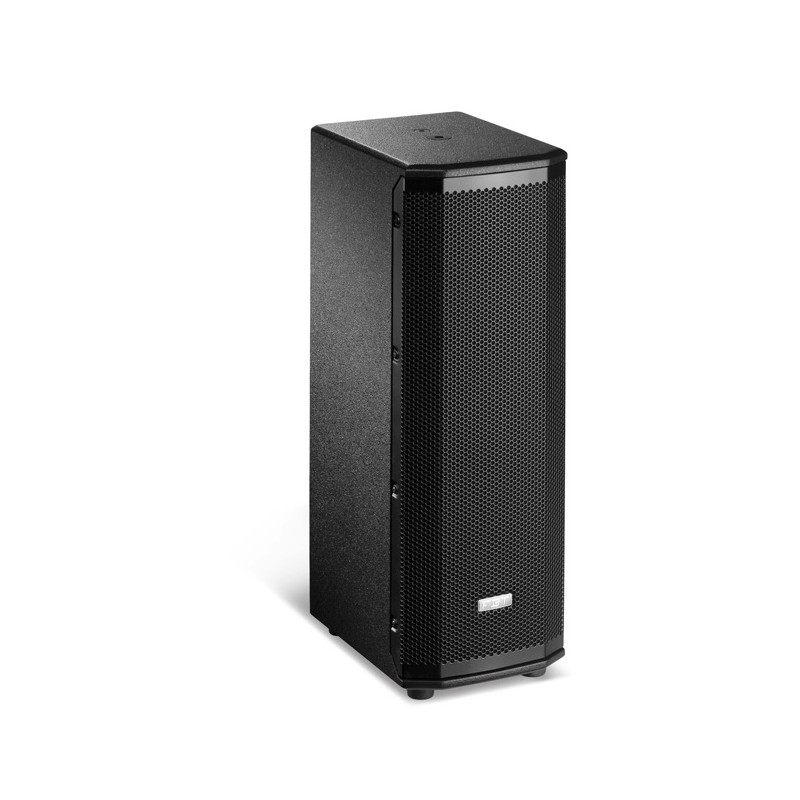

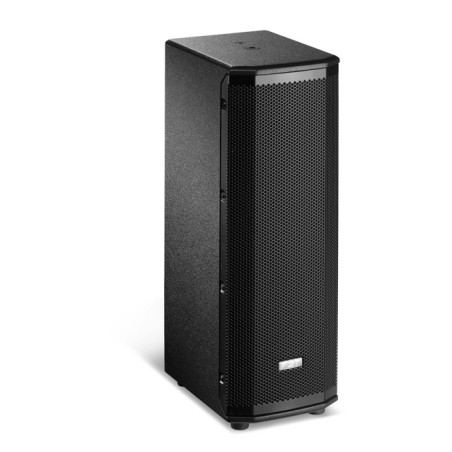

FBT VENTIS 206A 900watt

PROCESSED ACTIVE SPEAKER 700W + 200W RMS – 131DB SPL

2-way, bi-amplified, bass reflex design

Biamped: 700W RMS LF and 200W RMS HF power amplifiers in Class D for LF and in Class H/AB for HF

Digital Signal Processor with graphic display

15 mm (0.59”) birch plywood scratch resistant enclosure and internal bracing

High efficiency switch mode power supply

Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push

2x165mm (6.5”) LF woofer with 38mm (1.5”) voice coil, custom made for FBT

25mm (1”) exit throat B&C HF compression driver with 36mm (1.4”) voice coil

Frequency response from 70Hz to 20 kHz

70°H x 50°V Constant Directivity Rotatable Horn

6 x M10 suspension points, wall bracket mount thread, 35mm (1 3/8”) top-hat

One integrated handle

12mm (0.47”) birch plywood scratch resistant enclosure and internal bracing
