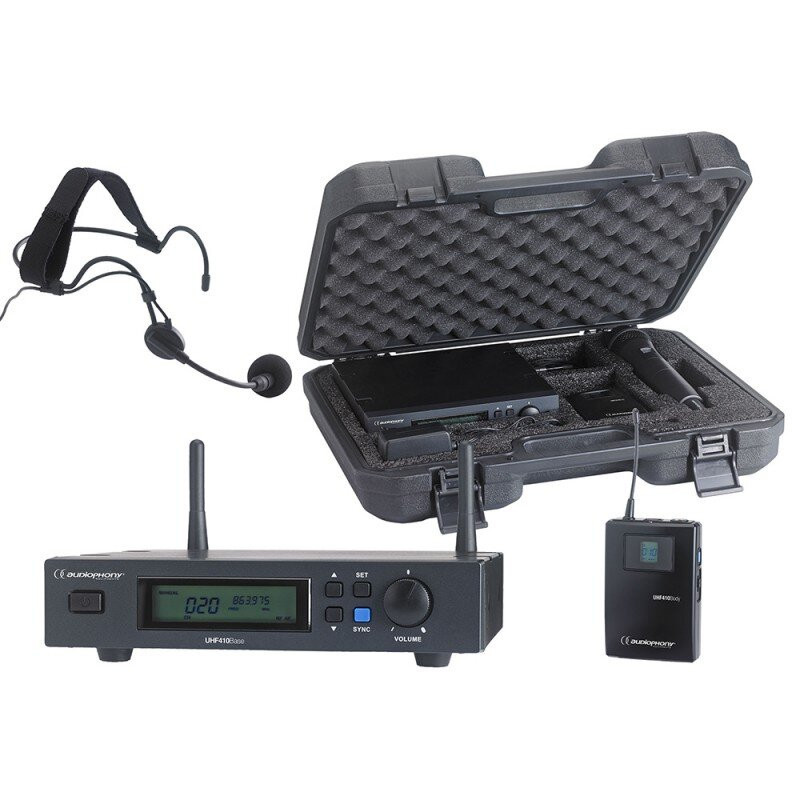

AUDIOPHONY PACK-UHF410-Head

SPECIFICHE TECNICHE

Technical characteristics

Headset microphone

• Microphone type: electret condenser
• Sensitivity: -47 ±4 dB
• Directivity: cardioid
• Frequency response: 100 Hz - 10 kHz
• Max current: 10 V
• Standard current: 1.5 V
• Power consumption: 0.5 mA max.
• S/N ratio: more than 60 dB
• Supplied accessory: windshield

Bodypack transmitter

• Frequency ranges: UHF 863 - 865 MHz
• Max power: 10 mW (max.)
• 40 channels with auto-scan function
• LCD display: channel, batterie level
• MIC input via mini-XLR
• Gain level: -10 / 0 / +10 dB
• Power supply: 2 x AA type 1.5 V batteries (not supplied)

UHF40 - base receiver

• True Diversity receiver
• Frequency range: UHF 863 - 865 MHz
• 40 preset frequencies with auto-scan function
• Channels presets: 4 groups, 4 compatible channels per group
• Channels selection: Tact Switch, Auto-Scan, sync
• LCD display: frequencie, group, canal, RF & AF
• XLR and 6.35 mm jack mono balanced and unbalanced audio output
• Line or MIC level
• Oscillator: PLL Synthesiser
• Frequence stability: ±0,005%
• Modulation: FM
• T.H.D.: < 1% (@ 1 kHz)
• Audio frequency response: 80 Hz - 18 kHz
• Volume adjust with the front control knob
• Squelch adjusting setting with the rear control knob
• BNC removable antennas, many accessories available
• Power supply: 12 V_DC (adapter supplied)
• Power consumption: 260 mA ±10 mA
