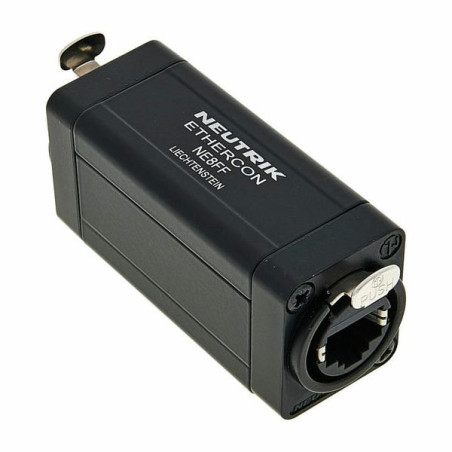

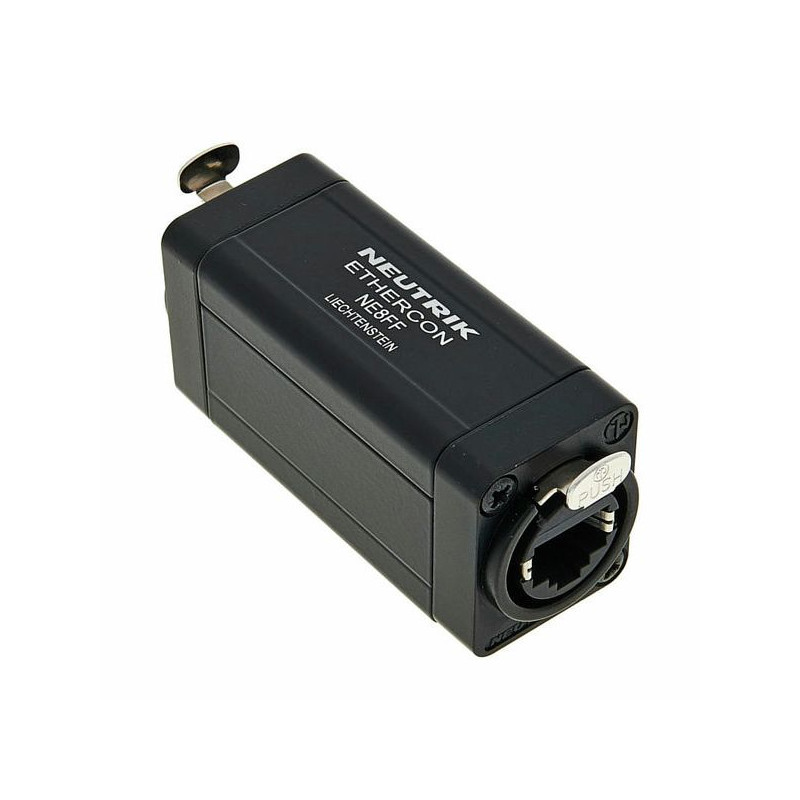

NEUTRIK NE8FF

Adattatore EtherCON RJ45 femmina passante. Blocco a scatto, compatibile con connettori RJ45 standard. Ideale per la prolunga di cavi in applicazioni professionali e semi-professionali.

SPECIFICHE TECNICHE

Features & Benefits

• Accommodates NE8MC* or any standard RJ45 plug
• The adapter offers the approved latch lock system
• The D shape adapters are problem solvers for various intermating problems for professional and semi-professional applications

Product

• Title NE8FF
• Connection Type Adapter
• Gender female

Electrical

• Contact resistance < 10 mohm
• Dielectric strength 1 kV_DC
• Frequencyrange 1 - 100 MHz
• Insulation resistance > 0.5 Gohm
• Rated current per contact 1,5 A
• Rated voltage < 50 V
• Standard compliance TIA/EIA 586B, IEC11801

Mechanical

• Insertion force ≤ 20 N
• Withdrawal force ≤ 20 N
• Lifetime > 1000 mating cycles
• Wiresize
• Locking device Latch lock

Material

• Contact plating 0.2 µm Au over Ni plating
• Contacts Bronze (CuSn8)
• Insert PBTP 15 % GR
• Shell AlMgSi 0.5, black plated
• Strain relief CuZn35Pb2, Tin plated

Environmental

• Flammability UL 94 HB
• Temperature range -30 °C to +80 °C
