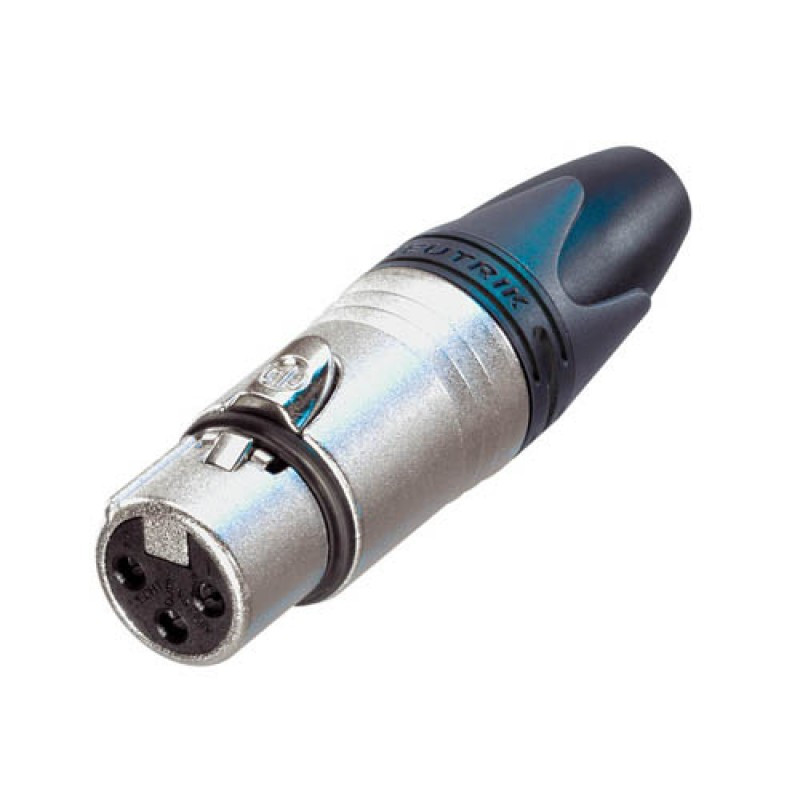

NEUTRIK NC3FXX-D

Connettore XLR femmina a 3 poli volante, disassemblato. La Serie XX è lo standard riconosciuto a livello mondiale della linea di connettori XLR. Involucro nickel e contatti in argento, design elegante, ergonomico, robusto, semplice e veloce assemblaggio. Ottima conduttività, contatto di massa e sistema di scarico della trazione del cavo. Disponibili come opzione anelli e boccole di identificazione colorati. Confezione sfusa ordinabili a multipli di 100 pezzi.

SPECIFICHE TECNICHE

• Unique cage design of female contact for low contact resistance and high integrity
• Female contact incorporates a solder barrier to prevent solder running into the contact mating area
• Female connector with improved solid metal latch which is larger and easier to handle
• Additional ground spring contacts for better shell ground continuity
• Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
• Boot with polyurethane gland gives high protection to cable bending stresses
• Colored rings and boots available for coding or identification
• Sleek and ergonomic design - valuable and handy
• Rugged zinc diecast shell, longlasting and dependable
• Internal thread on shell is well protected against any damage
• Branded with unique hologram - guarantees genuine and authentic Neutrik product

Product

• Title NC3FXX-D
• Connection Type XLR
• Gender female

Electrical

• Capacitance between contacts ≤ 4 pF
• Contact resistance ≤ 3 mΩ
• Dielectric strength 1,5 kVdc
• Insulation resistance > 10 GΩ (initial)
• Rated current per contact 16 A
• Rated voltage < 50 V

Mechanical

• Cable O.D. 3.5 - 8.0 mm
• Insertion force ≤ 20 N
• Withdrawal force ≤ 20 N
• Lifetime > 1000 mating cycles
• Wiresize max. 2.5 mm²
• Wiresize max. 14 AWG
• Locking device Latch lock

Material

• Boot Polyurethan
• Contact plating 2 µm Ag
• Contacts Bronze (CuSn8)
• Insert Polyamide (PA 6.6 30 % GR)
• Locking element Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
• Shell Zinc diecast (ZnAl4Cu1)
• Shell plating Nickel
• Strain relief Polyacetal (POM)

Environmental

• Flammability UL 94 HB
• Standard compliance IEC 61076-2-103
• Protection class IP 40
• Solderability Complies with IEC 68-2-20
• Temperature range -30 °C to +80 °C
