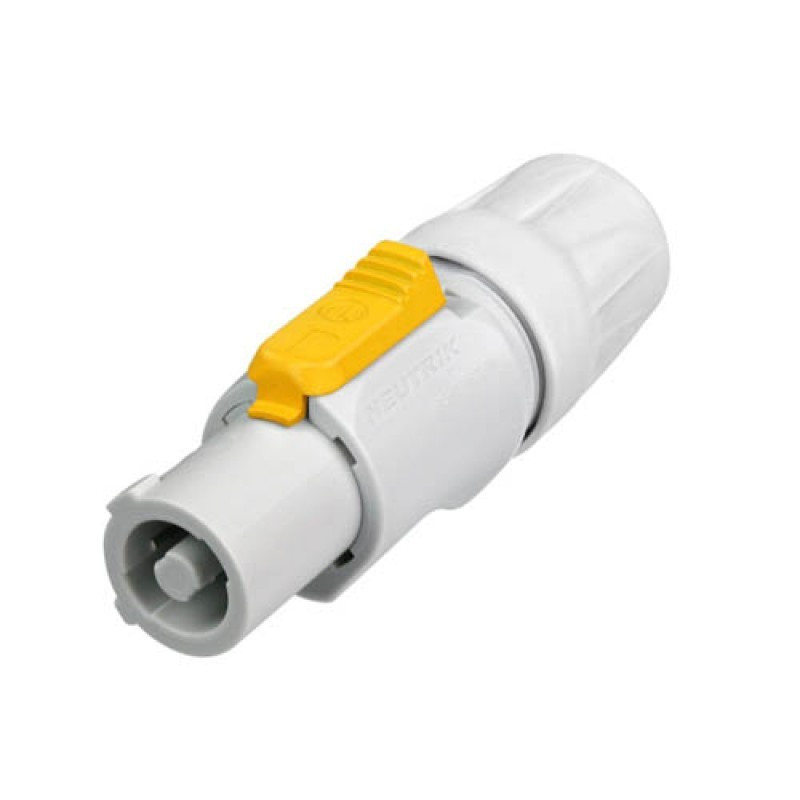

NEUTRIK NAC3FCB-D

Connettore di alimentazione disassemblato a 3 poli (linea, neutro, terra) per alimentare apparecchi che necessitano una soluzione robusta e un sistema di bloccaggio rapido e sicuro. Attenzione: PowerCON non è progettato per il collegamento in tensione, non è pertanto consigliato collegare o scollegare apparecchi sotto carico. Colore grigio indica Power Out.

SPECIFICHE TECNICHE

Features & Benefits

• Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
• Fast and easy twist lock latching system
• Extremely robust and reliable
• Ergonomic design
• Unique Neutrik chuck type strain relief
• Improved kink protection by two-component bushing
• UL, cUL recognized components
• VDE certified
• SEV approved
• Branded with unique hologram - guarantees genuine and authentic Neutrik product

Product

• Title NAC3FCB
• Gender female

Electrical

• Contact resistance ≤ 3 mΩ
• Dielectric strength 4 kVdc / 2.8 kVac
• Insulation resistance > 0.1 GΩ (after damp heat test IEC 68-2-30)
• Number of electronical contacts 2 + PE
• Rated current per contact 20 A rms
• Rated voltage 250 V ac

Mechanical

• Cable O.D. 6 - 15 mm (1)
• Lifetime > 1000 mating cycles
• Wiresize 2,5 mm²
• Wiresize 12 AWG
• Locking device Quick Lock
• (1) Cable O.D. range limited to 6 mm - 14 mm acc. VDE

Material

• Contact plating 4 µm Ag
• Contacts Bronze (CuSn6)
• Insert Polyamide (PA 6 30 % GR)
• Locking element Zinc diecast (ZnAl4Cu1)
• Shell Polyamide (PA 6 30 % GR)
• Strain relief Polyacetal (POM)

Environmental

• Temperature range -30 °C to +80 °C
