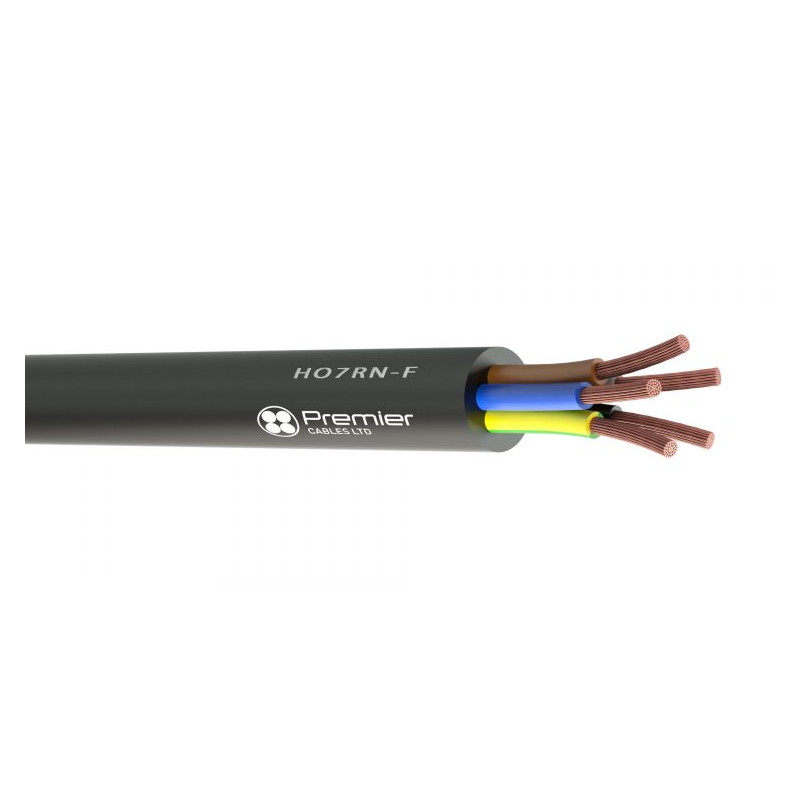

PREMIER H07RNF NERO 5G6 AL MT

Conductor -        Class 5 flexible copper conductor to BS EN 60228

Insulation -         EPR (Ethylene Propylene Rubber)

Sheath -               PCP (Polychloroprene) Type EM2 according to BS

EN 50363

Voltage Rating (Uo/U) - 450/750V

Temperature Rating -     max. conductor temperature in service 85°C

Minimum Bending Radius -         Fixed: 4 x overall diameter

Flexed: 6 x overall diameter

Core Identification -        2 core: Blue Brown

3 core: Green/Yellow Blue Brown

4 core:Green/Yellow Brown Black Grey

5 core: Green/Yellow Blue Brown Black Grey

6 core and above: Black with White numbers

Green/Yellow

Sheath Colour - Blac

No. Of Cores      Nominal Cross Sectional Area    Outer Diameter Nominal Weight              Gland

mm² mm kg/km

1                             1.5                                                         5.8          52                                                          20s

1                             2.5                                                         6.5          67                                                          20s

1                             4                                                             7.4          92                                                          20s

1                             6                                                             8.1          119                                                        20s

1                             10                                                          9.8          185                                                        20s

1                             16                                                          11.3       258                                                        20

1                             25                                                          13.3       375                                                        20

1                             35                                                          14.6       485                                                        25

1                             50                                                          17.2       669                                                        25

1                             70                                                          19.3       892                                                        32

1                             95                                                          22.2       1160                                                      32

1                             120                                                        24.3       1436                                                      32

1                             150                                                        25.9       1748                                                      40

1                             185                                                        29.7       2142                                                      40

1                             240                                                        31.5       2698                                                      50s

1                             300                                                        36.5       3348                                                      50s

1                             400                                                        40.4       4293                                                      50

1                             500                                                        42.6       5262                                                      50

1                             630                                                        47.2       6790                                                      63s

3                             1                                                             8.7          117                                                        20s

3                             1.5                                                         9.6          123                                                        20s

3                             2.5                                                         11.4       147                                                        20

3                             4                                                             13.2       297                                                        25

3                             6                                                             14.7       390                                                        25

3                             10                                                          19.9       705                                                        32

3                             16                                                          23.31     1031                                                      32

3                             25                                                          27.7       1512                                                      40

3                             35                                                          30.2       1907                                                      50s

3                             50                                                          35.8       2651                                                      50s

3                             70                                                          40.1       3484                                                      50

3                             95                                                          46.4       4594                                                      63s

4                             1                                                             9.6          142                                                        20s

4                             1.5                                                         10.6       180                                                        20s

4                             2.5                                                         12.6       260                                                        20

4                             4                                                             14.6       336                                                        25

4                             6                                                             16.4       449                                                        32

4                             10                                                          21.8       833                                                        32

4                             16                                                          25.4       1138                                                      40

4                             25                                                          30.7       1714                                                      50

4                             35                                                          33.4       2204                                                      50

4                             50                                                          39.6       3029                                                      -

4                             70                                                          44.9       4121                                                      -

4                             95                                                          51.9       5361                                                      -

4                             120                                                        66           7990                                                      -

5                             1.5                                                         11.8       206                                                        20L

5                             2.5                                                         14           297                                                        25

5                             4                                                             16.2       422                                                        25

5                             6                                                             18.2       567                                                        32

5                             10                                                          24           1010                                                      40

5                             16                                                          28.2       1400                                                      40

5                             25                                                          33.9       2096                                                      50

5                             35                                                          37.2       2700                                                      50

5                             50                                                          44           3730                                                      63S

7                             1.5                                                         15.1       315                                                        25

7                             2.5                                                         17.6       445                                 &nb
