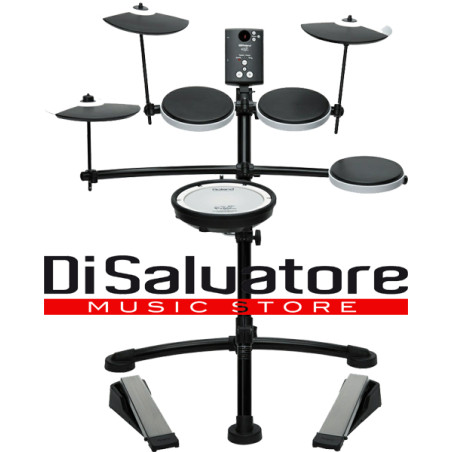

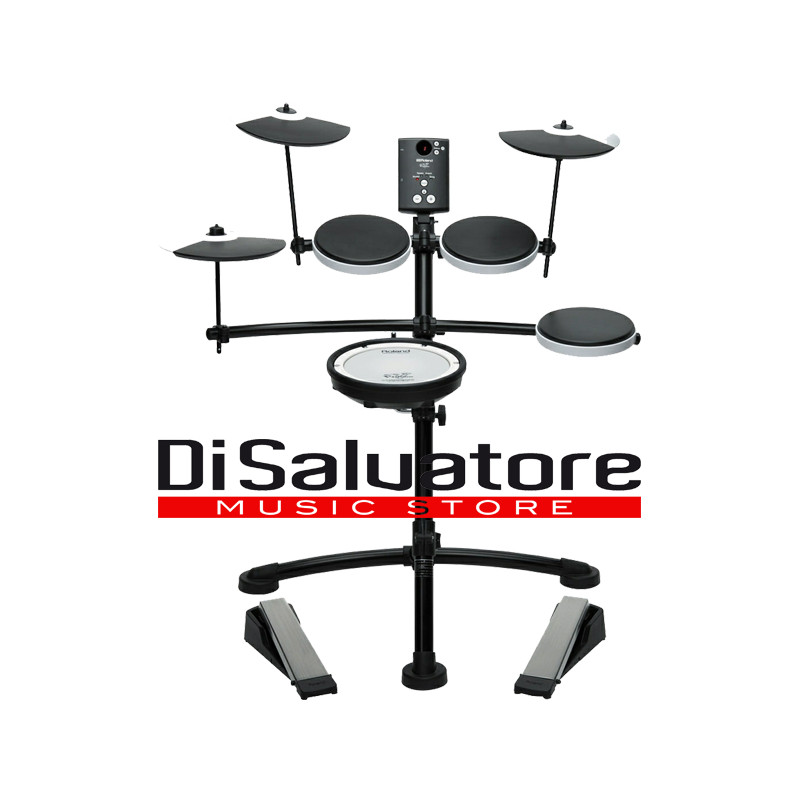

TD1KV V-DRUM

KIT CONFIGURATIONPercussion Sound ModuleTD-1Snarex 1 (Mesh head)Tomx 3Crash, Ridex 1Hi-hatx 1Kick pedalx 1Hi-hat pedalx 1OTHERDrum Kits15Coach Functions10:

Time Check (Easy)

Time Check (Hard)

Change-up

Auto Up/Down

Quiet Count

Tempo Check (Easy)

Tempo Check (Hard)

Stroke Balance

Timer

RecordingSongs15MetronomeTempo (40--260)

Rhythm Type (5 types)

Sounds (8 types)

Volume (10 levels)Display7 segments, 3 characters (LED)ConnectorsOUTPUT/PHONES jack: Stereo miniature phone type

MIX IN jack: Stereo miniature phone type

USB COMPUTER port: USB type B

TRIGGER INPUT connector: DB-25 type (Kick, Snare, Tom 1, Tom 2, Tom 3, Hi-hat, Crash 1, Crash 2, Ride, Hi-hat control)

InterfaceUSB (USB-MIDI)Power SupplyAC adaptorCurrent Draw150 mAAccessoriesOwner's Manual

Leaflet "USING THE UNIT SAFELY"

Drum key

Cable clip

Special connection cable

AC adaptor

*Drum throne is not included.Options (sold separately)Cymbal: OP-TD1C

Kick: KD-9, KT-10

Personal Drum Monitor: PM-03

V-Drums Mat: TDM-3

SIZE AND WEIGHTWidth800 mm

31-1/2 inchesDepth700 mm

27-9/16 inchesHeight1150 mm

45-5/16 inchesSIZE AND WEIGHT (INCLUDING CYMBALS AND DRUM THRONE)Width1000 mm

39-6/16 inchesDepth1200 mm
