JTS KA10 PACKAGE

JTS KA-10

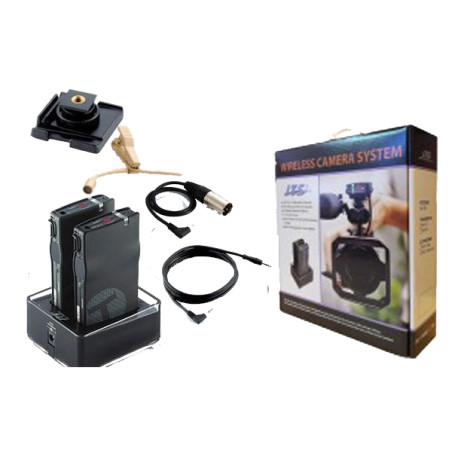

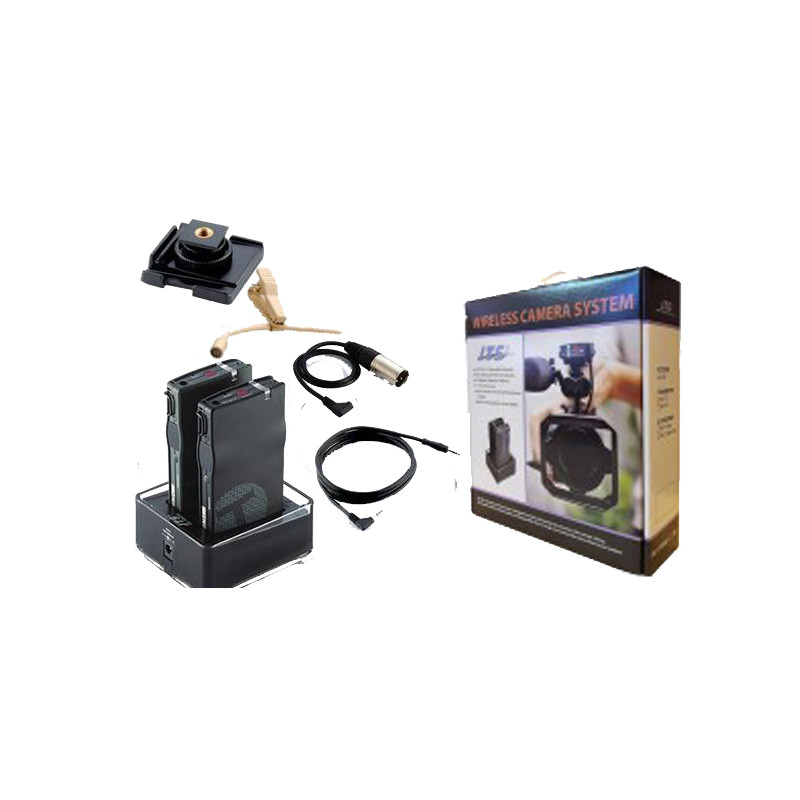

Sistema UHF PLL wireless per telecamera composto da: KA-10R ricevitore, KA-10T trasmettitore, KAC50X cavo per telecamera (50 cm; mini jack stereo - XLR), KAC150 cavo per telecamera (150 cm; mini jack stereo- mini jack stereo), TG-10CH2 caricatore per 2 batterie, SMA adattatore di montaggio e CM-201iF microfono lavalier omnidirezionale. Garantita l’operatività del sistema fino a 60 metri. 16 canali selezionabili. Banda di frequenza 638 MHz- 662 MHz.

Technical specifications KA-10/1PACK

• KA-10/1PACK
• General information  -
• Description     16-channel PLL audio transmission system
• Carrier frequency range         863-865 MHz
• Audio frequency range          40-18,000 Hz
• Channels         16
• THD    < 1%
• Admiss. ambient temp.          0-40 °C
• Specifications transmitter      -
• Transmitting power    < 10 mW
• Operating range         approx. 60 m
• Power supply transmitter      3.7 V rech. lithium-ion battery
• Width transmitter       55 mm
• Height transmitter      100 mm
• Depth transmitter       18 mm
• Weight transmitter     80 g
• Specifications receiver          -
• Audio signal receiver 300 mV/7 kΩ (jack)
• Power supply receiver           3.7 V rech. lithium-ion battery
• Width receiver           55 mm
• Height receiver          100 mm
• Depth receiver           18 mm
• Weight receiver          82 g
• Connections receiver1 x 3.5 mm jack (transmitter) 1 x 3.5 mm jack (receiver)
